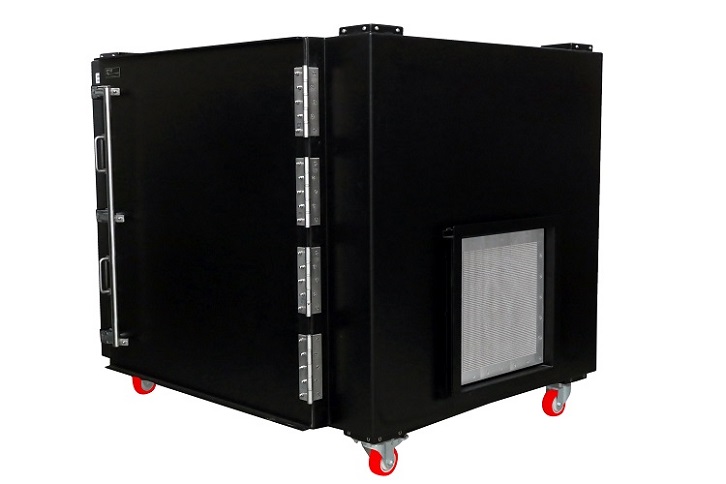

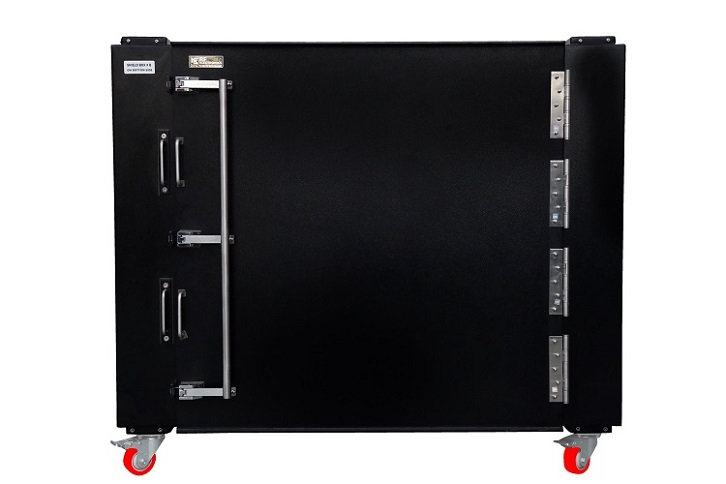

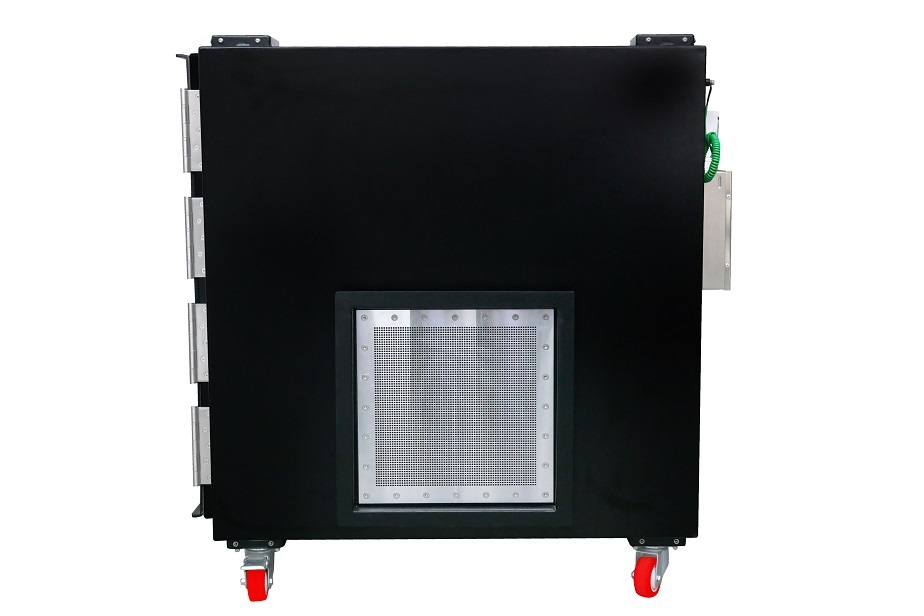

HDRF-3579-J RF Shield Test Box

Want to customize your shield box? Build Your Shieldbox

Stand Alone Portable RF Shield Box.
Designed and Developed for WLAN , Wireless device testing.
Ideal for 802.11a, b, g, n, ac,ax,be
Bluetooth, RFID, 3G, LTE , 5G Device testing
Specially Designed for V-T Testing with Temperature Chamber or Environmental Test Chamber

Internal Dimensions

Width: 1150 MM, Height: 850 MM, Depth : 850 MM

External Dimensions

Width: 1200 MM, Height: 900 MM, Depth : 900 MM

Weight

Net Weight: 108.00 KG, Gross Weight: 255.00 KG

V/S

Designed and Developed for WLAN , Wireless device testing
Specially Designed for V-T Testing with Temperature Chamber or Environmental Test Chamber
Ideal for 802.11a, b, g, n, ac, ax,be
Bluetooth, RFID, 3G, 5G Device testing

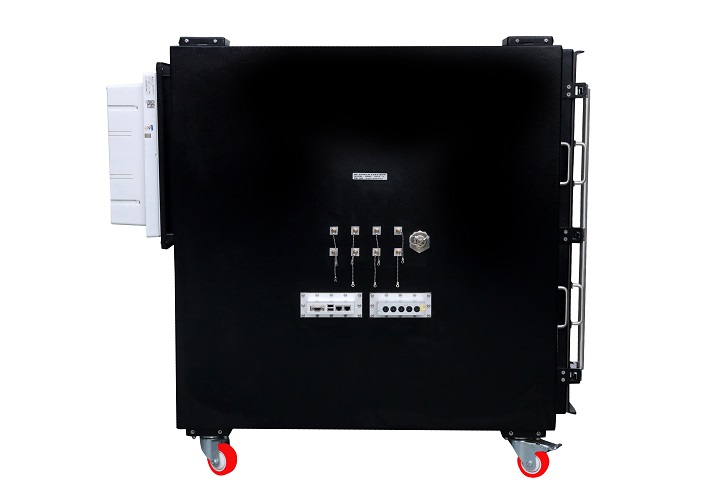

Wide range of I/O connector options.

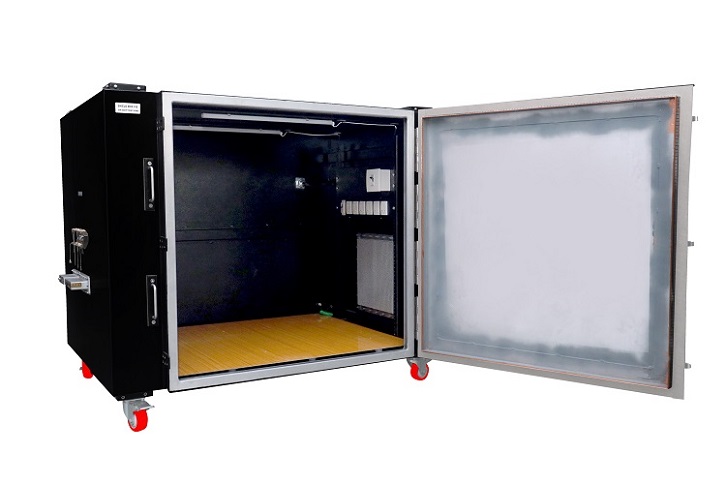

Thick RF absorbing foam deadens standing waves and reflections.
Higher Level Isolation up-to 12GHz for accurate performance.
Equipped with shielded power filters for power connection in the box while still blocking all wireless signals.
Rugged construction for long life
Fully portable design equipped with caster wheels for ease of movement.
Customized Size to suit application specific requirements ,ideal for test platforms.
Vertically Stackable upto 3 Units.
