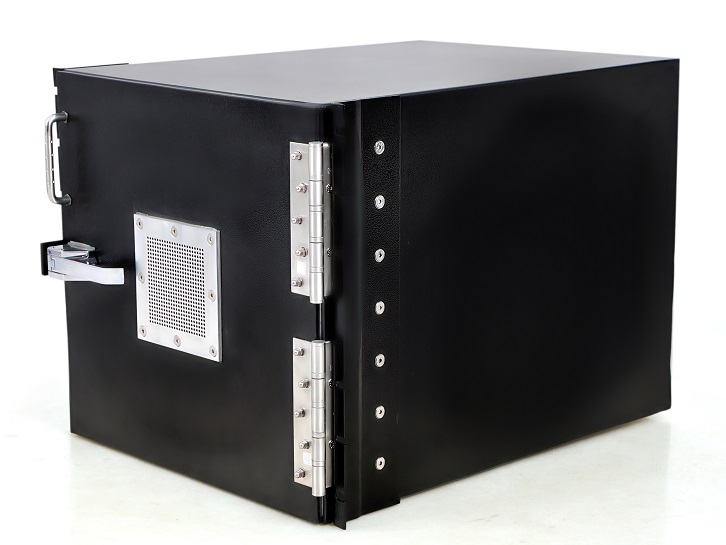

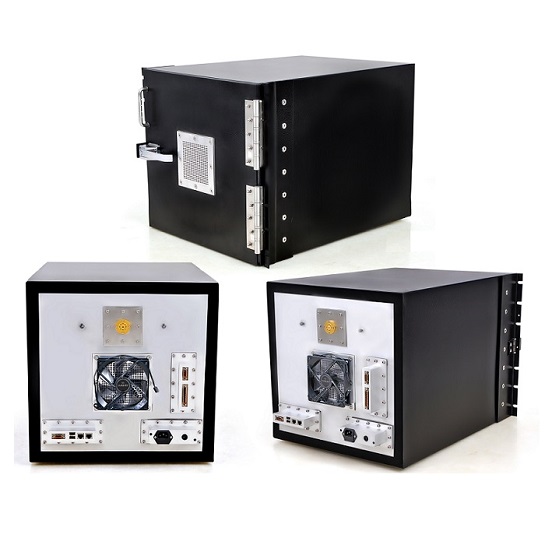

HDRF-1770 RF Shield Test Box

  • 19" Rack Mount RF Shield Box.
  • Designed and Developed for WLAN , Wireless device testing.
  • Ideal for 802.11a, b, g, n, ac, ad -for device upto 60~65 GHz
  • Bluetooth, RFID,3G Device testing
Internal Dimensions

Internal Dimensions

Width: 372 MM, Height: 374 MM, Depth : 493 MM

External Dimensions

External Dimensions

Width: 19 Inch, Height: 10 U, Depth : 580 MM

Weight

Weight

Net Weight: 20.00 KG, Gross Weight: 25.00 KG

Weight

Packaging Dimensions

Width: 23.00 Inch, Height: 20.00 Inch, Depth: 30.00 Inch

Add Product to Inquiry Add Product to Inquiry

Industries

Defence
Defence
Telecommunication
Telecommunication
Industrial Automation
Industrial Automation
Automotive
Automotive
Research Institution
Research Institution
Radar Systems
Radar Systems
Medical Devices
Medical Devices

RF Isolation

  • ≥ 130 dB @ 20 MHz ~ 1 GHz
  • ≥ 120 dB @ 3 GHz
  • ≥ 120 dB @ 5 GHz
  • ≥ 115 dB @ 6 GHz
  • ≥ 110 dB @ 7 GHz
  • ≥ 110 dB @ 8 GHz
  • ≥100 db @ 12 GHz
V/S
RF Isolation
Competition Isolation

Features of HDRF-1770

  • Designed and Developed for WLAN , Wireless device testing
  • Ideal for 802.11a, b, g, n, ac, ad  - For Devices up-to 60 ~ 65 GHz.
  • Bluetooth, RFID, 3G Device testing.

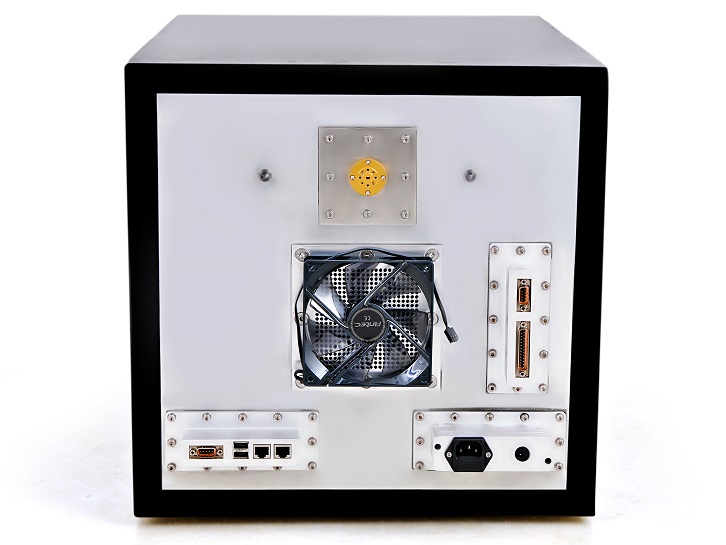

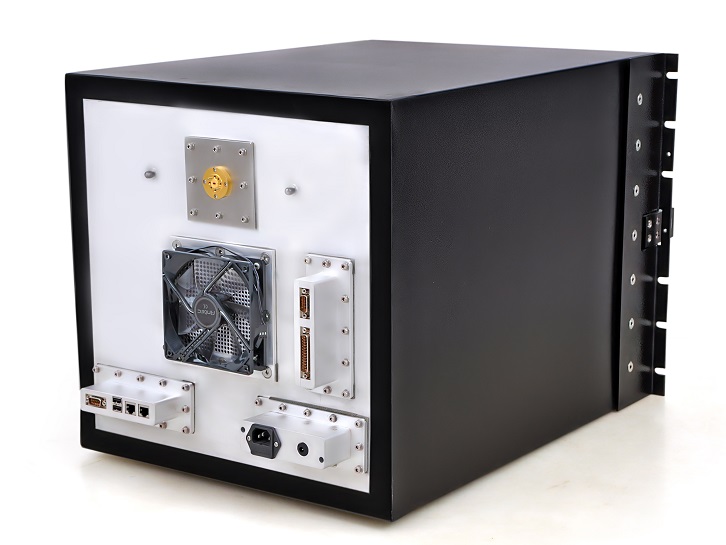

  • Equipped with V232-COAXIAL ADAPTERS DC to- 65GHz, Mounting Option for Waveguide Bulkhead Adapters 18 to 110 GHz.
  • Wide range of I/O connector options.
  • Thick RF absorbing foam deadens standing waves and reflections.
  • Equipped with shielded power filters for power connection in the box while still blocking all wireless signals.
  • Rugged construction for long life
  • Customized Size to suit application specific requirements, ideal for test platforms.
