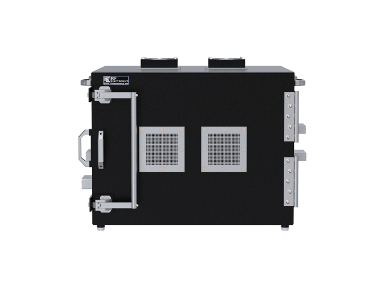

HDRF-2570 RF Shield Test Box

Want to customize your shield box? Build Your Shieldbox

Internal Dimensions

Width: 576 MM, Height: 588 MM, Depth : 548 MM

External Dimensions

Width: 635 MM, Height: 635 MM, Depth : 635 MM

Weight

Net Weight: 35.00 KG, Gross Weight: 45.20 KG

V/S

Designed and Developed for WLAN , Wireless device testing
Ideal for 802.11a, b, g, n, ac, ax, be
Bluetooth, RFID, 3G, 5G Device testing
Wide range of I/O connector options.
Thick RF absorbing foam deadens standing waves and reflections.
Higher Level Isolation up-to 12GHz for accurate performance.
Equipped with shielded power filters for power connection in the box while still blocking all wireless signals.
Rugged construction for long life.
Table Top design for the convenience of testing.
