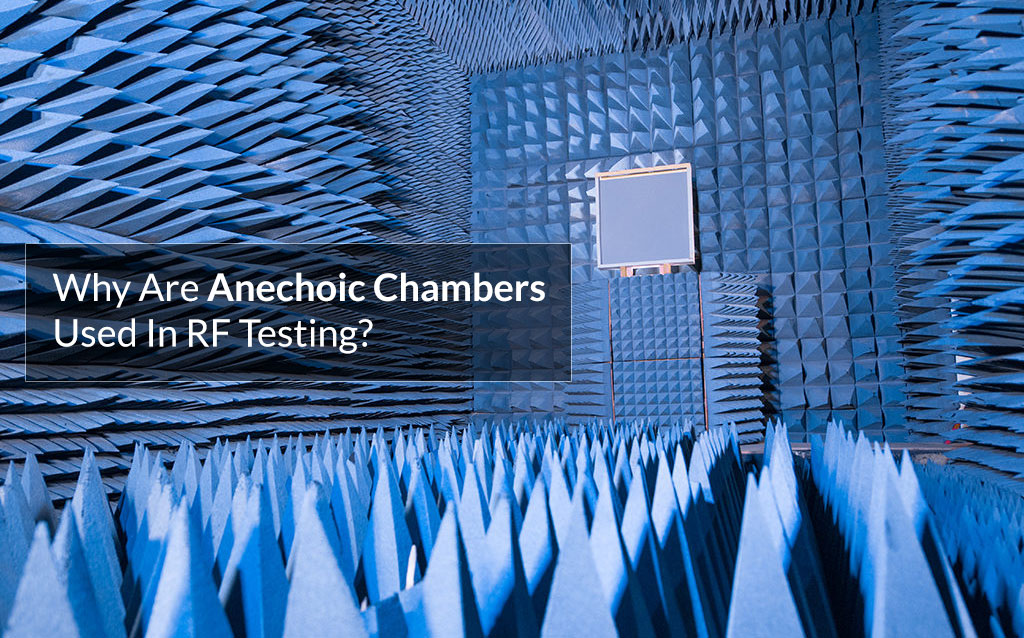

Why Are Anechoic Chambers Used In RF Testing?

Accuracy and Repeatability are the two important keys for any product testing. Anechoic chambers provide just that without outside interference (ex. signal/wave, wind and rain) and internal wave reflection. Various types of Anechoic chambers have been used with Radio Frequency (RF) absorbing material, in the antenna pattern characterization, radiated emission/immunity measurement, and other EMI/EMC regulatory standard measurements.



When a device under test (DUT) is placed inside a flawless anechoic chambers , there should be no unwanted signal present. Unwanted signals mainly come from two different places:



1. Waves coming from equipment outside the chamber (external waves)

2. Signals as a reflections from the DUT /or/ any other device / part kept inside Chamber.



The size of an anechoic chamber can vary, ranging from "mini-chambers" that can fit on a lab bench to ones as big as airplane hangars. Let us see how an anechoic chamber works!



Anechoic chambers are designed with Metal Walls Welded /or/ Bolted to Isolate the inside environment from the Outside World Interferences and are lined on the interior with wave-absorbing materials to prevent internal reflections.



The two crucial components of any product testing are accuracy and repeatability. Anechoic chambers deliver this without internal wave reflection and outside disturbance. Anechoic chambers have been used in the characterization of antenna patterns, measurement of radiated emission/immunity, and other EMI/EMC regulatory standard measurements for commercial / military product performance testing and characterization.





Many different features of radios, antennas, and wireless devices are impacted by the interference sources in their environments. Characterizing these impacts can be difficult when working with real-world systems. An anechoic chamber is a room designed to absorb reflections and produce a controlled, uniform field called quiet zone of a specific size within the chamber. RF-testing engineers use an anechoic chamber to eliminate external noise sources that could cause variations in electromagnetic waves, thus ensuring accurate readings on the performance of the devices being tested.



Testing / Characterizing wireless devices in the anechoic chamber can avoid the many problems caused by reflections from walls and other objects in an environment. These reflections may be due to metal / non-, metal objects nearby, such as tools or equipment, or they can be reflections from metal in buildings, vehicles, etc. An anechoic chamber allows engineers to measure antenna performance without these reflections and so enables them to calibrate their devices more accurately.



As previously indicated, a variety of measurements are carried out in anechoic chambers, including:



Measurements of antenna patterns

- Radiated Emissions Testing

- Radiated Immunity Testing

- Wireless Transmitter (RF) Testing

- Radar Cross-Section Measurements

For each sort of application, a different chamber may be necessary.





RF Electronics is a manufacturer of Regular RF Shielded Rooms, RF Test Racks, Semi-Anechoic Chambers, Fully Anechoic Chambers, RF Shield Boxes. We have successfully deployed Anechoic chambers / Shield Boxes/Full Turn Key racks to several vendors over the past ten years, and we are by your team during the entire deployment process to ensure a smooth experience. We have the complete test capability for RF / uWave / mmWave Isolation Testing. We can proudly say that after being in the market for about ten years and observing the competition, We offer the best of quality (in terms of isolation, absorption, and IOs), complete door-to-door delivery, one-stop solution for your tailor made units and High Shielding Effectiveness(RF isolation) Requirements with quick build times. Need any RF Testing Equipment? Contact us now!!
