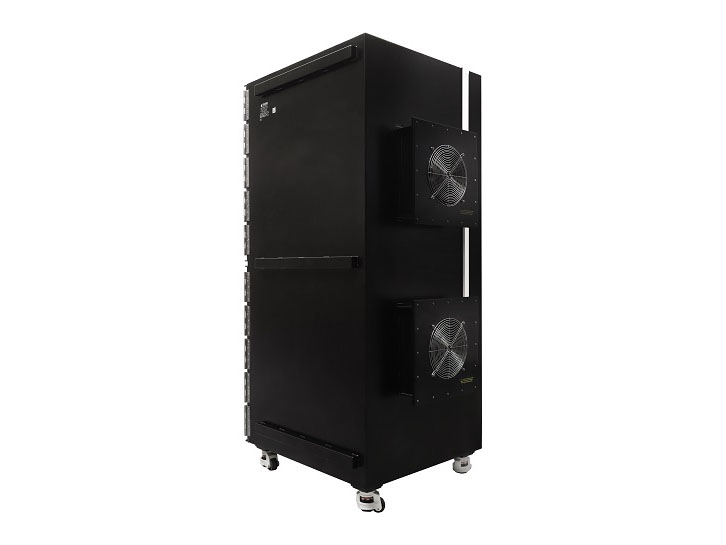

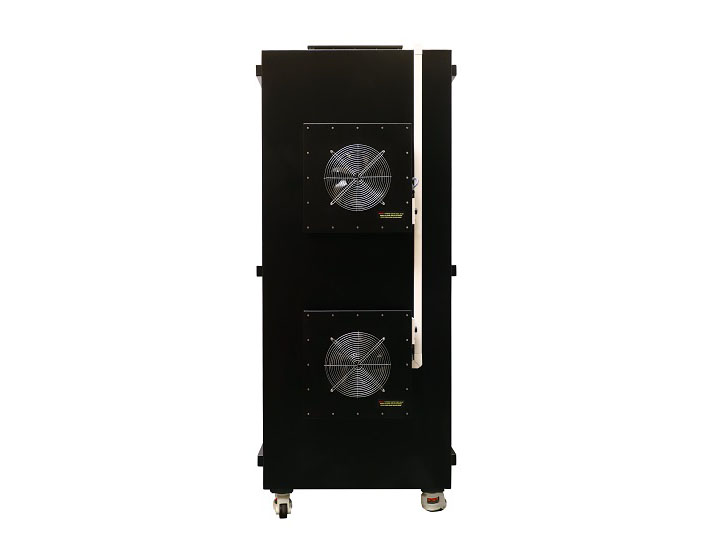

HDRF-7370-O RF Shield Test Box

HDRF-7370-O
HDRF-7370-O
HDRF-7370-O
HDRF-7370-O
HDRF-7370-O

Want to customize your shield box? Build Your Shieldbox

HDRF-7370-O

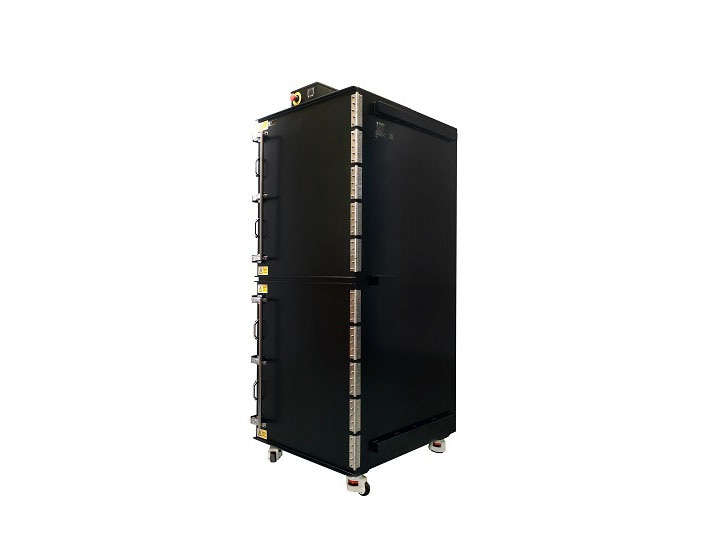

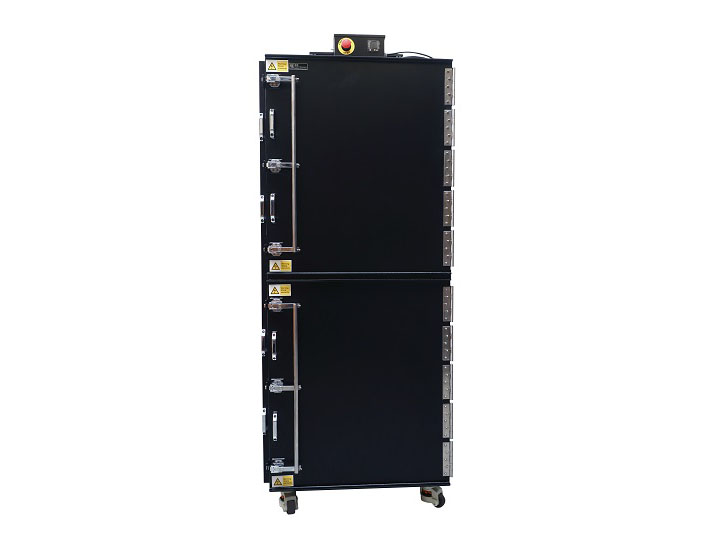

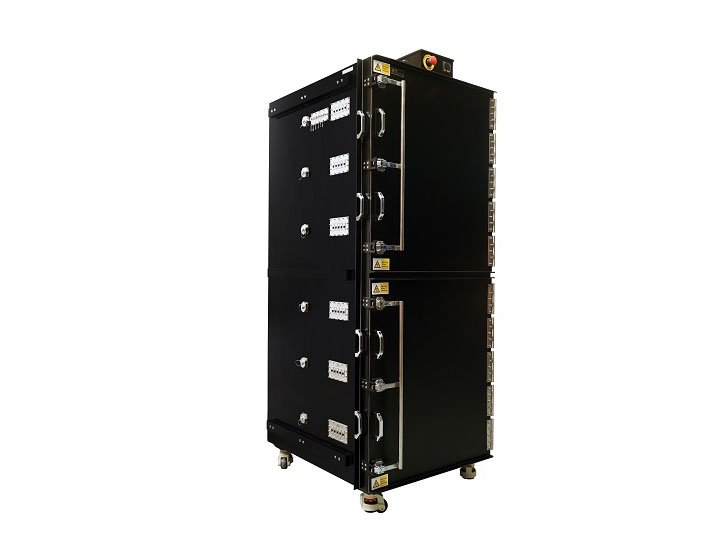

HDRF-7370-O RF Shield Test Box

  • Stand Alone Portable RF Shield Box.
  • Designed and Developed for WLAN , Wireless device testing.
  • Ideal for 802.11a, b, g, n, ac,ax,be
  • Bluetooth, RFID, 3G, LTE , 5G Device testing
Internal Dimensions

Internal Dimensions

Width: 734 MM, Height: 1794 MM, Depth : 823 MM

External Dimensions

External Dimensions

Width: 800 MM, Height: 1855 MM, Depth : 890 MM

RF Isolation

  • ≥ 130 dB @ 20 MHz ~ 1 GHz
  • ≥ 120 dB @ 3 GHz
  • ≥ 120 dB @ 5 GHz
  • ≥ 115 dB @ 6 GHz
  • ≥ 110 dB @ 7 GHz
  • ≥ 110 dB @ 8 GHz
  • ≥100 db @ 12 GHz
V/S
RF Isolation
Competition Isolation

Features of HDRF-7370-O

  • Designed and Developed for WLAN , Wireless device testing
  • Ideal for 802.11a, b, g, n, ac, ax,be
  • Bluetooth, RFID, 3G, 5G Device testing

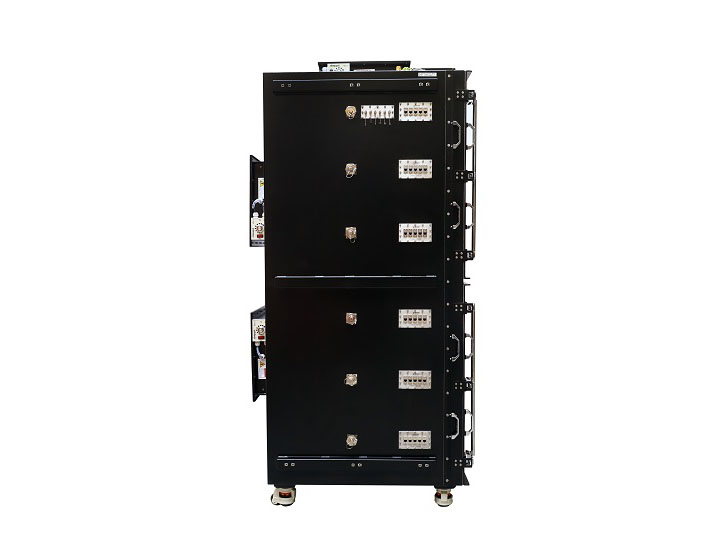

  • Wide range of I/O connector options.

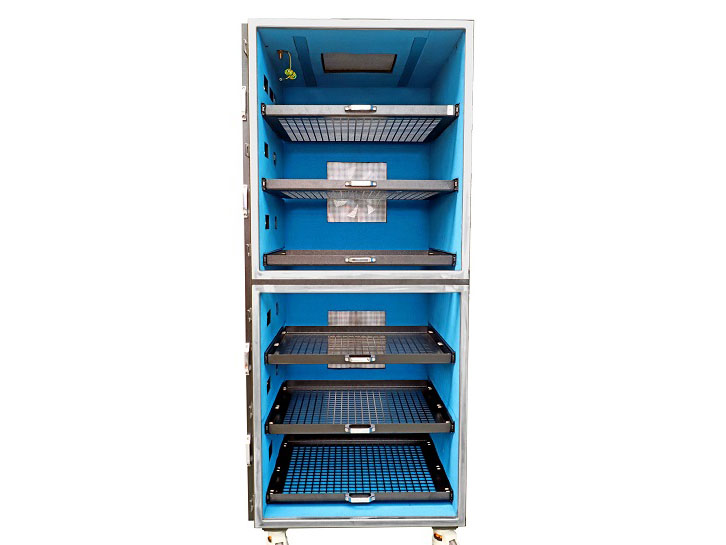

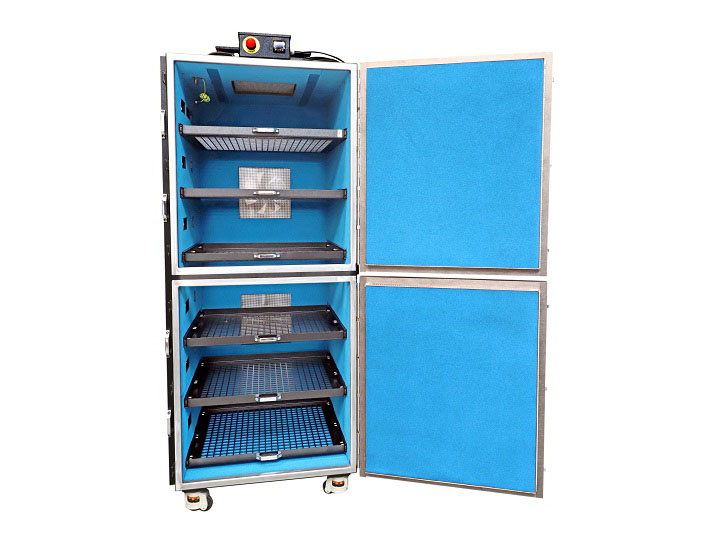

  • Thick RF absorbing foam deadens standing waves and reflections.
  • Higher Level Isolation up-to 12GHz for accurate performance.
  • Equipped with shielded power filters for power connection in the box while still blocking all wireless signals.
  • Rugged construction for long life
  • Fully portable design equipped with caster wheels for ease of movement.
  • Customized Size to suit application specific requirements ,ideal for test platforms.
