HDRF-6127-B RF Shield Test Box

Want to customize your shield box? Build Your Shieldbox

Internal Dimensions

Width: 1460 MM, Height: 550 MM, Depth : 830 MM

External Dimensions

Width: 1525 MM, Height: 610 MM, Depth : 890 MM

V/S

Designed and Developed for WLAN , Wireless device testing
Ideal for 802.11a, b, g, n, ac, ax, be
Bluetooth, RFID, 3G, 5G Device testing
Wide range of I/O connector options.

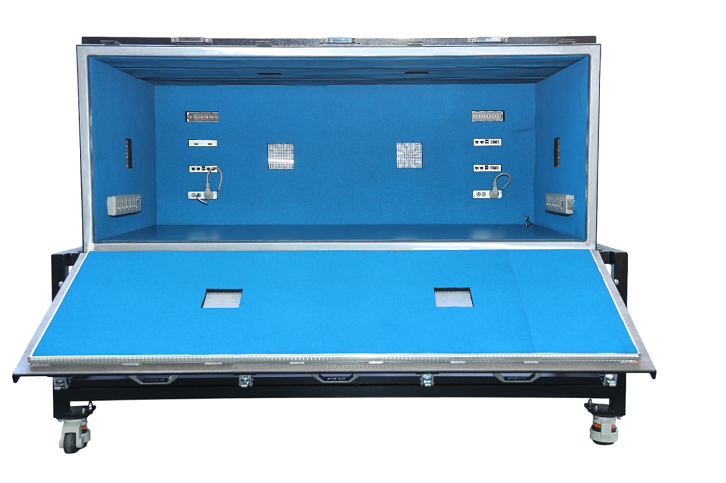

Thick RF absorbing foam deadens standing waves and reflections.
Higher Level Isolation up-to 12GHz for accurate performance.
Equipped with shielded power filters for power connection in the box while still blocking all wireless signals.
Rugged construction for long life
Fully portable design equipped with caster wheels for ease of movement.
Customized Size to suit application specific requirements ,ideal for test platforms.
