HDRF-3699

HDRF-3699 RF Shield Test Box

Want to customize your shield box? Build Your Shieldbox

HDRF-3699

HDRF-3699 RF Shield Test Box

Stand Alone Portable RF Shield Box.
Designed and Developed for WLAN , Wireless device testing.
Ideal for 802.11a, b, g, n, ac,ax, be
Bluetooth, RFID, 3G, LTE , 5G Device testing

Internal Dimensions

Width: 930 MM, Height: 840 MM, Depth : 1110 MM

External Dimensions

Width: 990 MM, Height: 900 MM, Depth : 1170 MM

Add Product to Inquiry

Add Product to Inquiry

Industries

IoT Device Testing

Telecommunication

RF Isolation

≥ 130 dB @ 20 MHz ~ 1 GHz
≥ 120 dB @ 3 GHz
≥ 120 dB @ 5 GHz
≥ 115 dB @ 6 GHz
≥ 110 dB @ 7 GHz
≥ 110 dB @ 8 GHz
≥100 db @ 12 GHz

V/S

RF Isolation

Competition Isolation

Features of HDRF-3699

Designed and Developed for WLAN , Wireless device testing
Ideal for 802.11a, b, g, n, ac, ax, be
Bluetooth, RFID, 3G, 5G Device testing
Wide range of I/O connector options.
Thick RF absorbing foam deadens standing waves and reflections.
Higher Level Isolation up-to 12GHz for accurate performance.
Equipped with shielded power filters for power connection in the box while still blocking all wireless signals.
Rugged construction for long life
Fully portable design equipped with caster wheels for ease of movement.
Customized Size to suit application specific requirements ,ideal for test platforms.

Need Help?

Download Datasheet

DOWNLOAD

Free Consultation

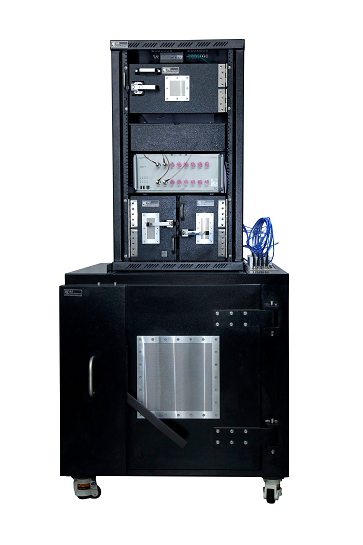

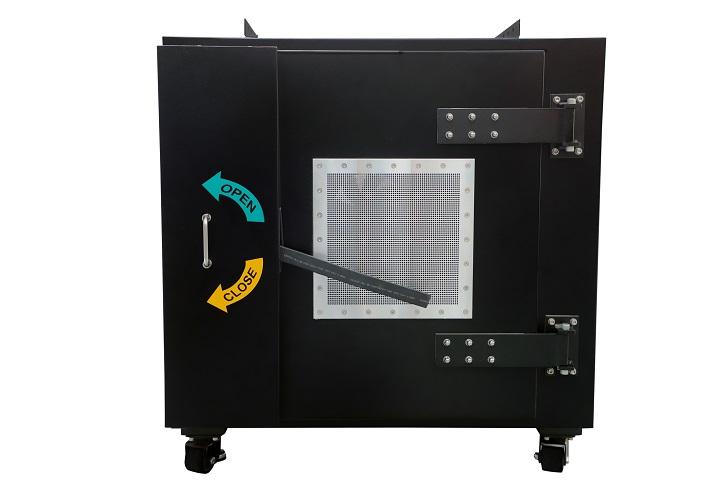

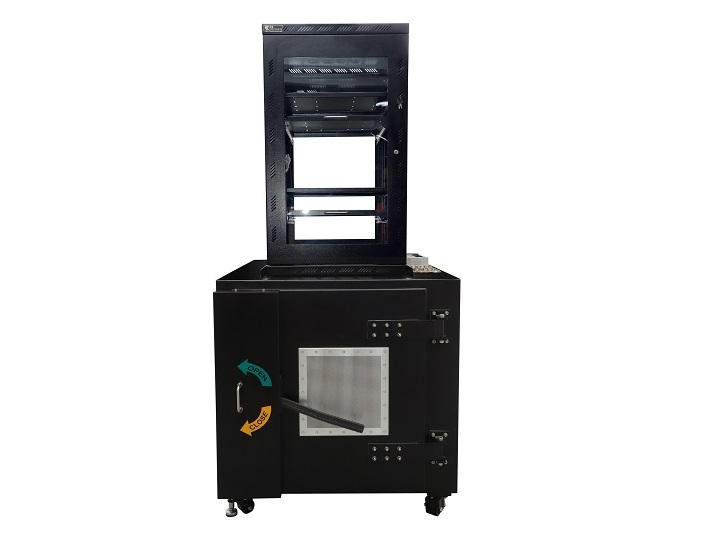

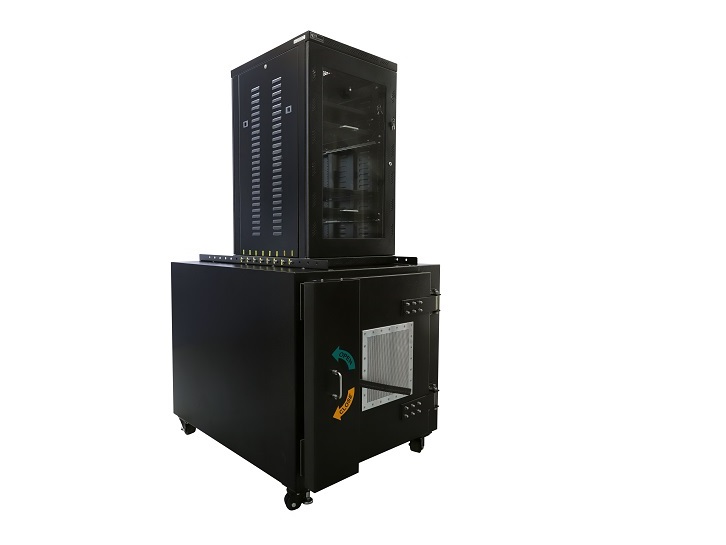

HDRF-3699 FRONT VIEW

enlarge

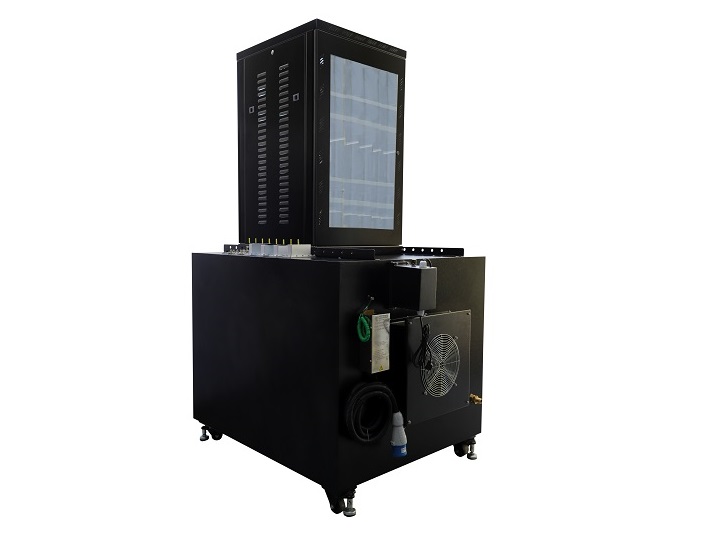

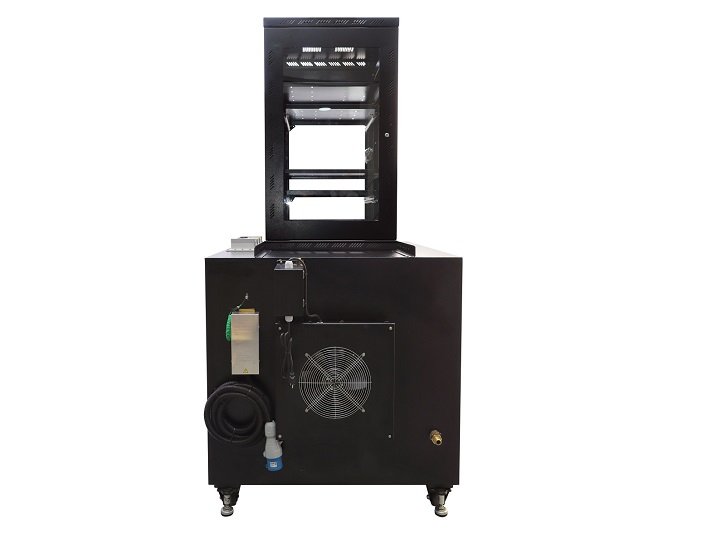

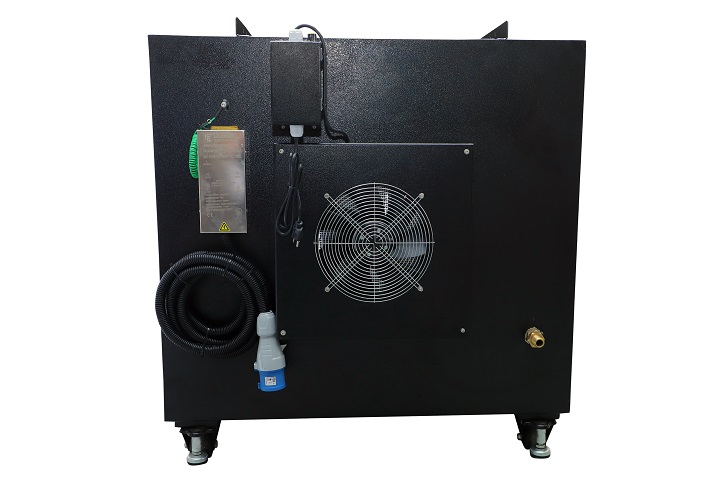

HDRF-3699 REAR VIEW

enlarge

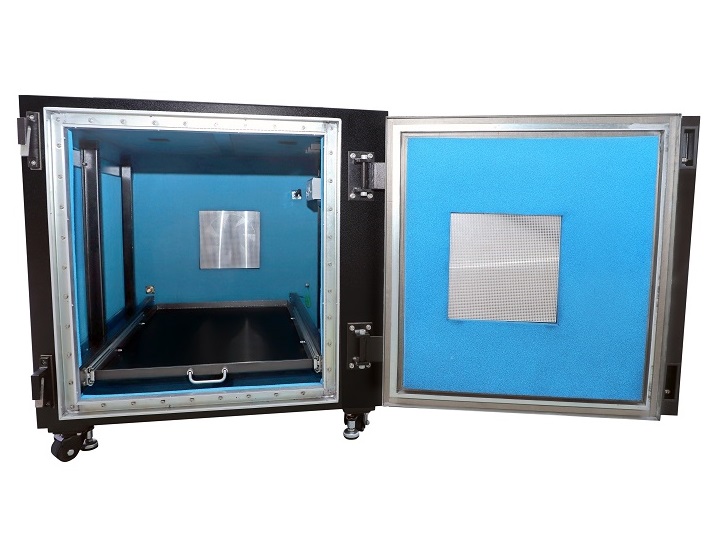

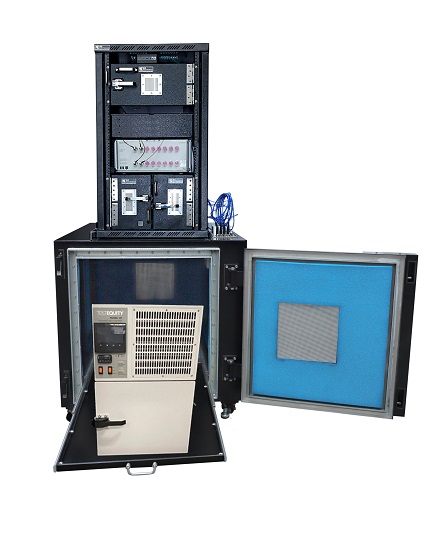

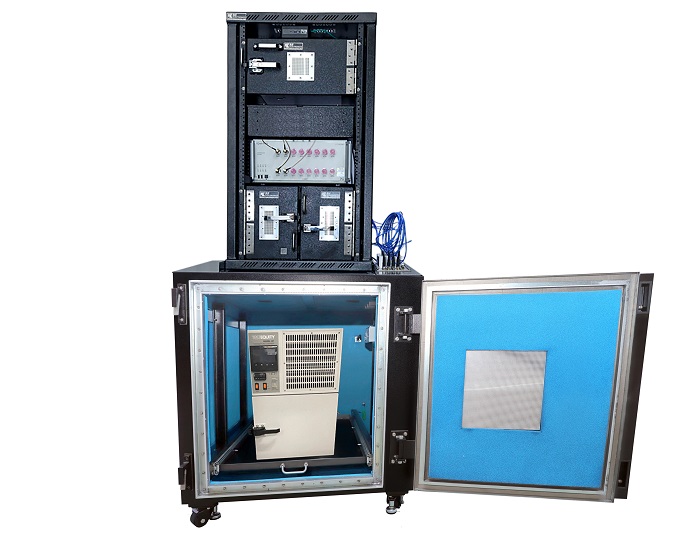

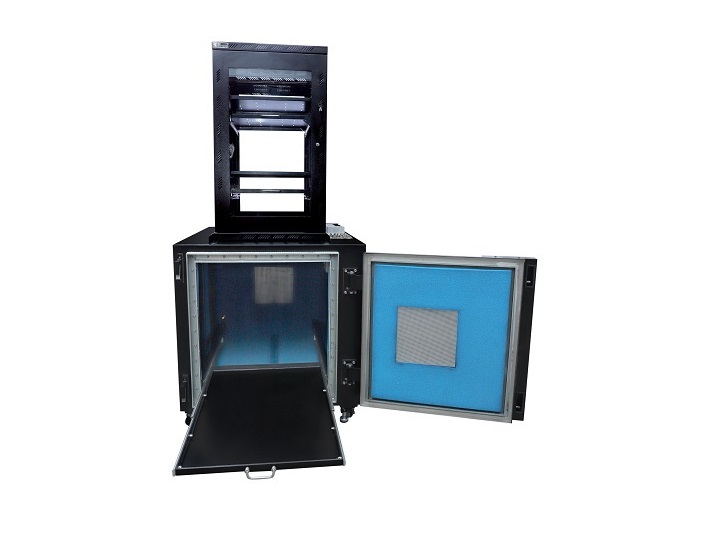

HDRF-3699 INSIDE VIEW

enlarge
