HDRF-3590

HDRF-3590 RF Tunnel Shield Box

HDRF-3590
HDRF-3590
HDRF-3590
HDRF-3590
HDRF-3590
ce rohs ISO
HDRF-3590
HDRF-3590
HDRF-3590
HDRF-3590
HDRF-3590

Want to customize your shield box? Build Your Shieldbox

HDRF-3590

HDRF-3590 RF Tunnel Shield Box

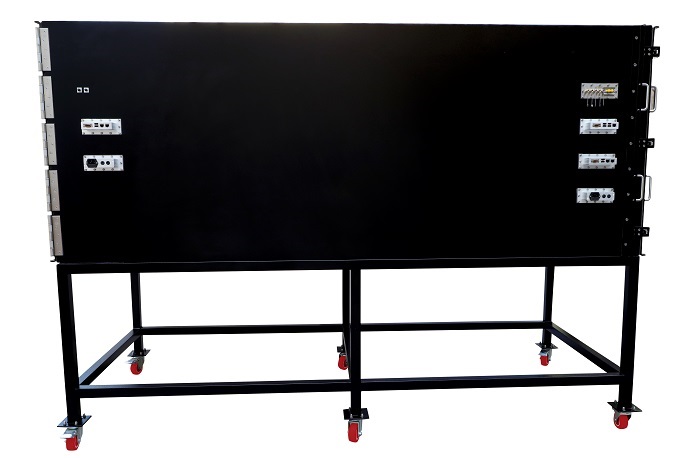

  • Stand Alone Tunnel Shield Box on Wheels for portability
  • Designed and Developed for 3G, LTE , 5G Beam Forming , Wireless device testing
  • Ideal for 5G Device Testing , Wireless 802.11 a, b, g, n, ac,be,ad
  • Bluetooth, RFID, 3G  , LTE , 5G Beam Forming
Internal Dimensions

Internal Dimensions

Width: 650 MM, Height: 650 MM, Depth : 2050 MM

External Dimensions

External Dimensions

Width: 900 MM, Height: 900 MM, Depth : 2300 MM

Add Product to Inquiry Add Product to Inquiry

Industries

Telecommunication
Telecommunication
Automotive
Automotive
Research Institution
Research Institution
Radar Systems
Radar Systems

RF Isolation

  • ≥ 130 dB @ 20 MHz ~ 1 GHz
  • ≥ 120 dB @ 3 GHz
  • ≥ 120 dB @ 5 GHz
  • ≥ 115 dB @ 6 GHz
  • ≥ 110 dB @ 7 GHz
  • ≥ 110 dB @ 8 GHz
  • ≥100 db @ 12 GHz
V/S
RF Isolation
Competition Isolation

Features of HDRF-3590

  • Wide range of I/O connector options.

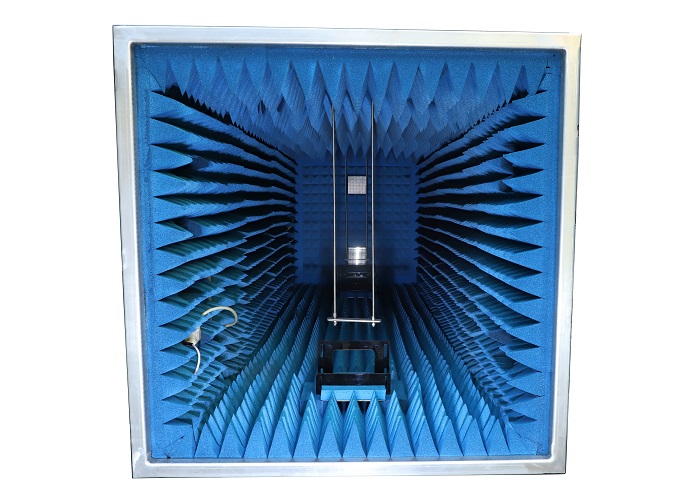

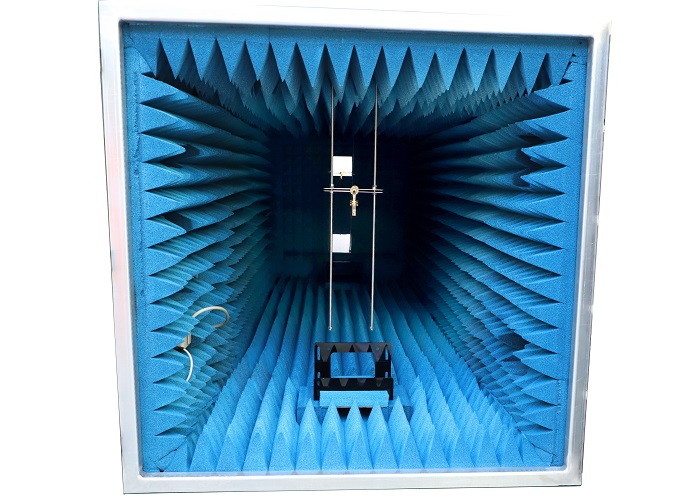

  • Thick RF absorbing foam deadens standing waves and reflections.
  • Higher Level Isolation up-to 40GHz for accurate performance.
  • Equipped with shielded power filters for power connection in the box while still blocking all wireless signals.
  • Experience seamless integration and superior performance with our RF test solutions for industrial applications.
  • Rugged construction for long life

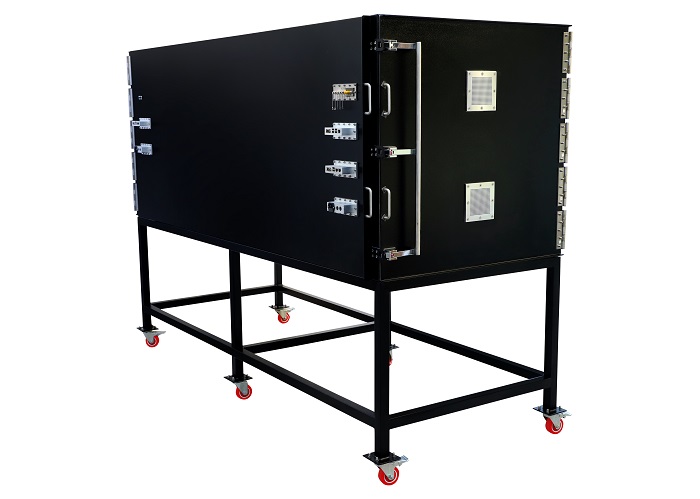

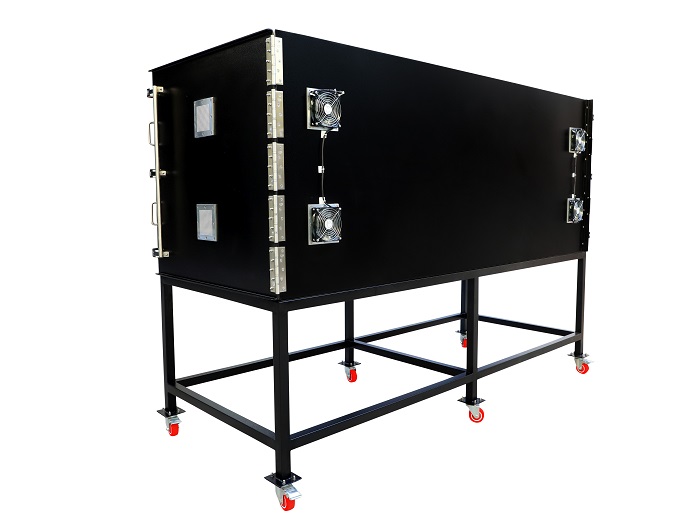

  • Fully portable design equipped with caster wheels for ease of movement.
  • Customized Size to suit application specific requirements ,ideal for test platforms.
