HDRF-251810

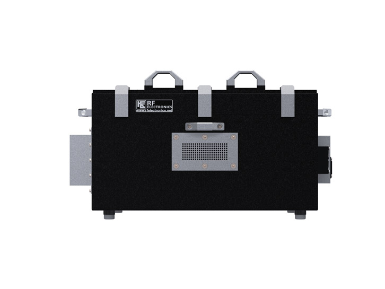

HDRF-251810 RF Shield Test Box

HDRF-251810
HDRF-251810
HDRF-251810
HDRF-251810
HDRF-251810
HDRF-251810

Want to customize your shield box? Build Your Shieldbox

HDRF-251810

HDRF-251810 RF Shield Test Box

  • Bench-top / Table-Top RF Shield Box.
  • Designed and Developed for WLAN , Wireless device testing.
  • Ideal for 802.11a, b, g, n, ac, ax,be
  • Bluetooth, RFID, 3G, LTE , 5G Device testing
Internal Dimensions

Internal Dimensions

Width: 548 MM, Height: 199 MM, Depth : 386 MM

External Dimensions

External Dimensions

Width: 635 MM, Height: 255 MM, Depth : 450 MM

RF Isolation

  • ≥ 130 dB @ 20 MHz ~ 1 GHz
  • ≥ 120 dB @ 3 GHz
  • ≥ 120 dB @ 5 GHz
  • ≥ 115 dB @ 6 GHz
  • ≥ 110 dB @ 7 GHz
  • ≥ 110 dB @ 8 GHz
  • ≥100 db @ 12 GHz
V/S
RF Isolation
Competition Isolation

Features of HDRF-251810

  • Designed and Developed for WLAN , Wireless device testing
  • Ideal for 802.11a, b, g, n, ac, ax,be
  • Bluetooth, RFID, 3G, 5G Device testing
  • Wide range of I/O connector options.
  • Thick RF absorbing foam deadens standing waves and reflections.
  • Higher Level Isolation up-to 12GHz for accurate performance.
  • Equipped with shielded power filters for power connection in the box while still blocking all wireless signals.
  • Comply with regulatory requirements and enhance product quality with our comprehensive EMC testing for automotive equipment
  • Rugged construction for long life.
  • Table Top design for the convenience of testing.
