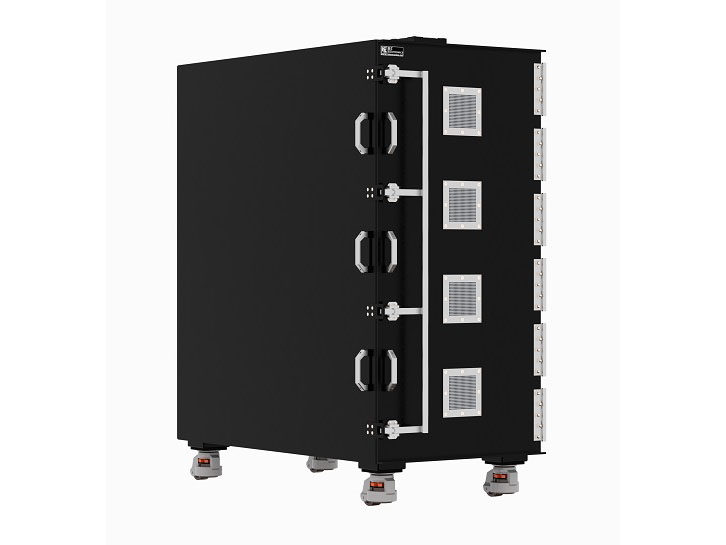

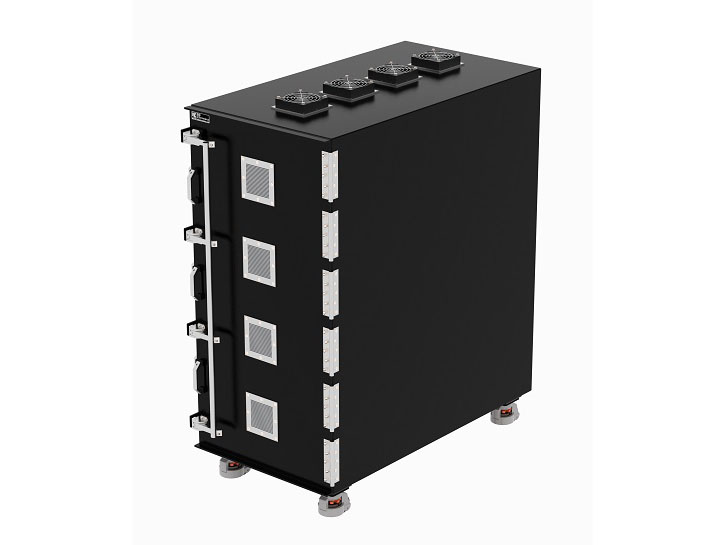

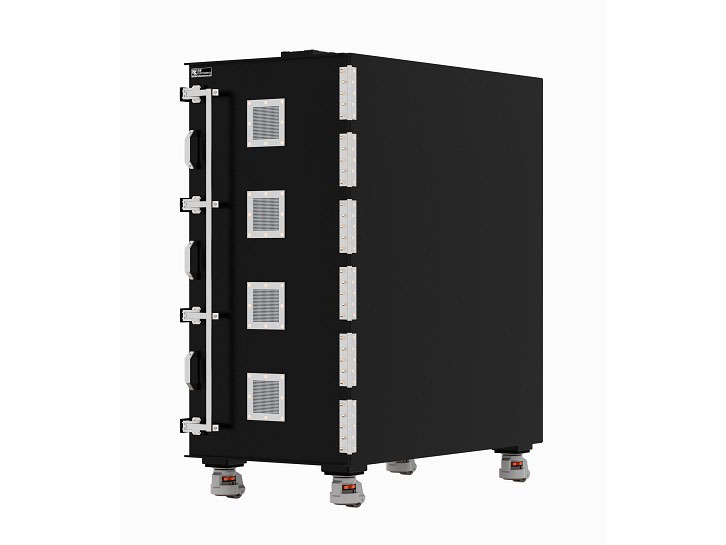

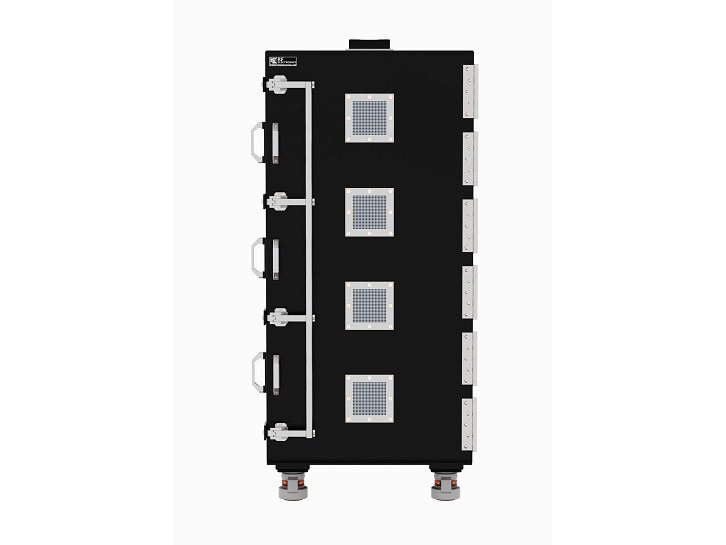

HDRF-244448 RF Shield Test Box

Want to customize your shield box? Build Your Shieldbox

Internal Dimensions

Width: 536 MM, Height: 1136 MM, Depth : 1030 MM

External Dimensions

Width: 600 MM, Height: 1200 MM, Depth : 1100 MM

V/S

Designed and Developed for WLAN , Wireless device testing
Ideal for 802.11a, b, g, n, ac, ax,be
Bluetooth, RFID, 3G, 5G FR1 Device testing
Wide range of I/O connector options.

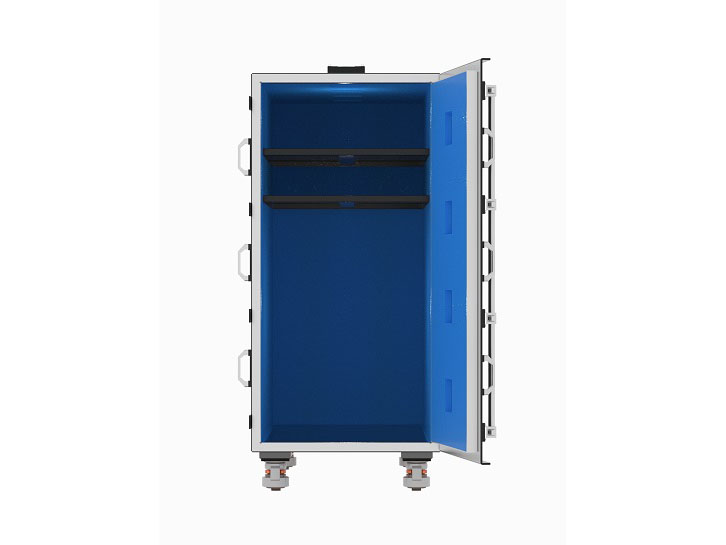

Thick RF absorbing foam deadens standing waves and reflections.
Higher Level Isolation up-to 12GHz for accurate performance.
Equipped with shielded power filters for power connection in the box while still blocking all wireless signals.
Rugged construction for long life
Fully portable design equipped with caster wheels for ease of movement.
Customized Size to suit application specific requirements ,ideal for test platforms.
