HDRF-353231-A RF Shield Test Box

Want to customize your shield box? Build Your Shieldbox

HDRF-353231-A

HDRF-353231-A RF Shield Test Box

Bench-top / Table-Top RF Shield Box.
Designed and Developed for WLAN , Wireless device testing.
Ideal for 802.11a, b, g, n, ac, ax,be
Bluetooth, RFID, 3G, LTE , 5G FR1 Device testing

Internal Dimensions

Width: 766 MM, Height: 716 MM, Depth : 743 MM

External Dimensions

Width: 880 MM, Height: 770 MM, Depth : 810 MM

Add Product to Inquiry

Add Product to Inquiry

Industries

Telecommunication

Industrial Automation

Research Institution

Medical Devices

RF Isolation

≥ 130 dB @ 20 MHz ~ 1 GHz
≥ 120 dB @ 3 GHz
≥ 120 dB @ 5 GHz
≥ 115 dB @ 6 GHz
≥ 110 dB @ 7 GHz
≥ 110 dB @ 8 GHz
≥100 db @ 12 GHz

V/S

RF Isolation

Competition Isolation

Features of HDRF-353231-A

Designed and Developed for WLAN , Wireless device testing
Ideal for 802.11a, b, g, n, ac, ax,be
Bluetooth, RFID, 3G, 5G FR1 Device testing
Wide range of I/O connector options.
Thick RF absorbing foam deadens standing waves and reflections.
Higher Level Isolation up-to 12GHz for accurate performance.
Equipped with shielded power filters for power connection in the box while still blocking all wireless signals.
Rugged construction for long life.
Table Top design for the convenience of testing.

Need Help?

Free Consultation

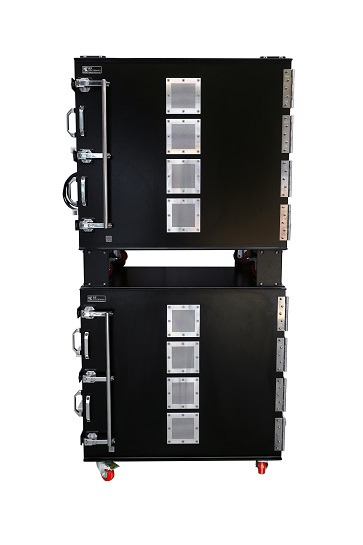

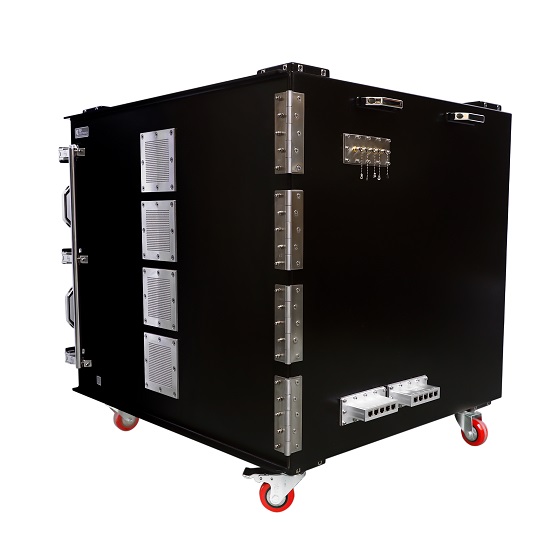

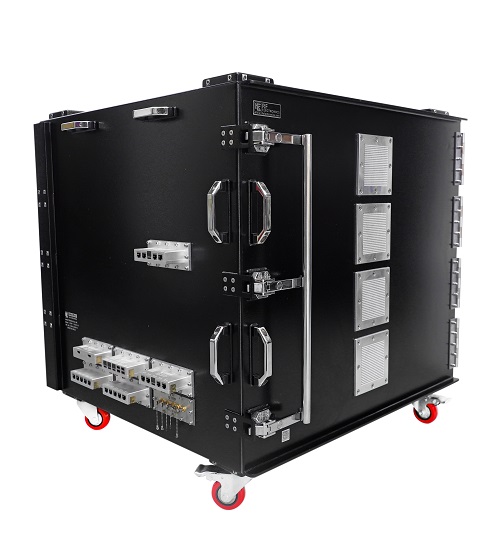

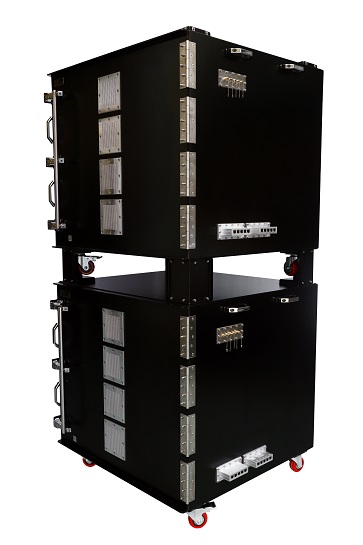

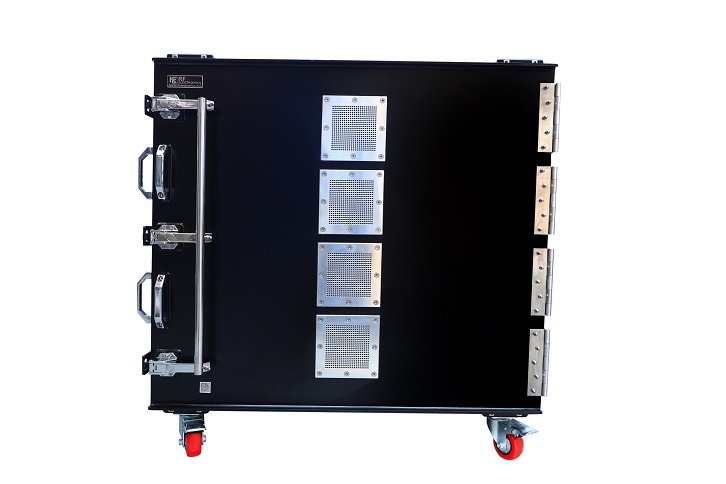

HDRF-353231-A FRONT VIEW

enlarge

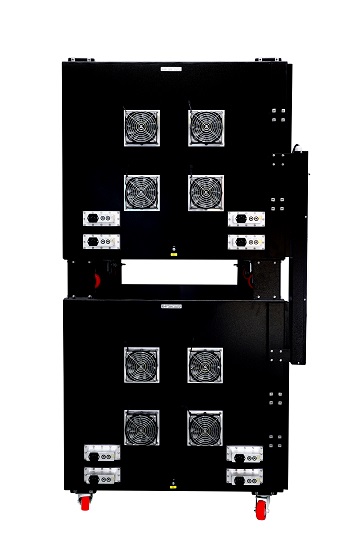

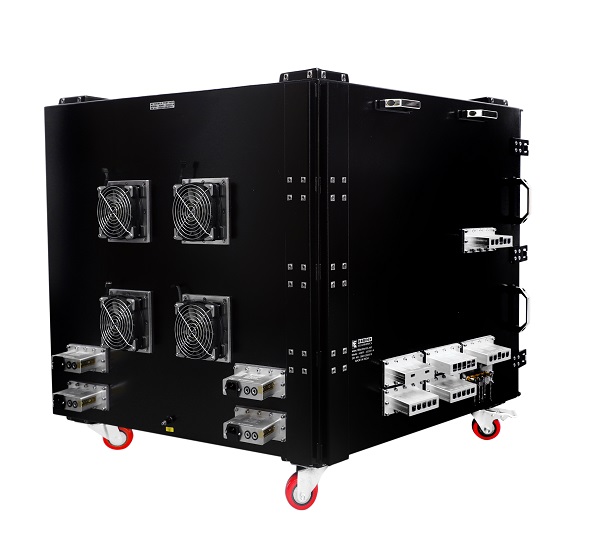

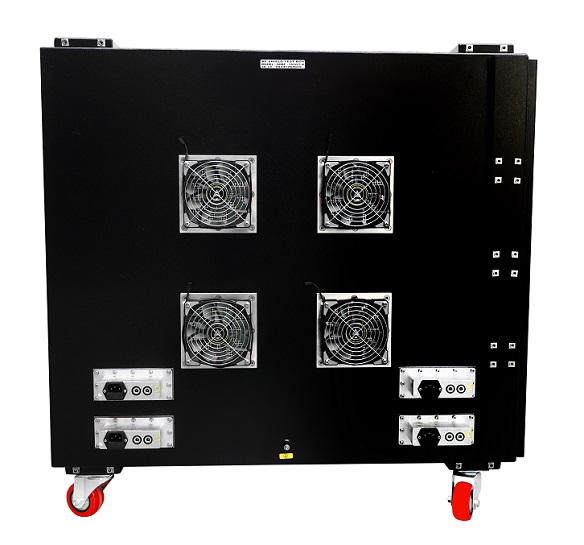

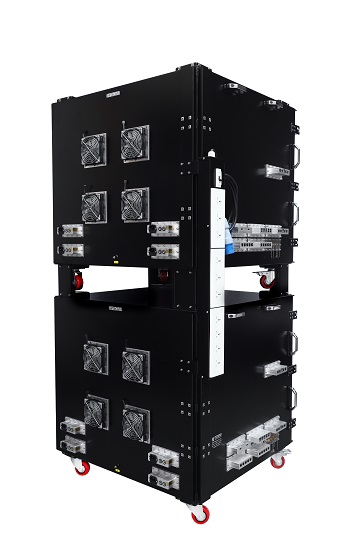

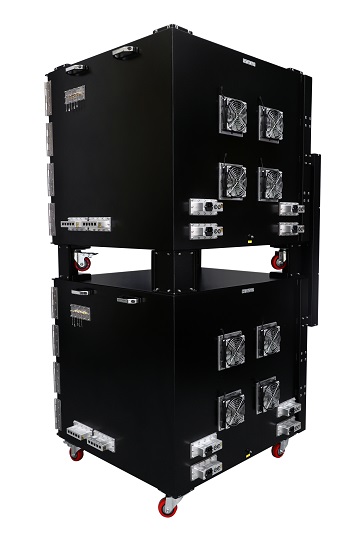

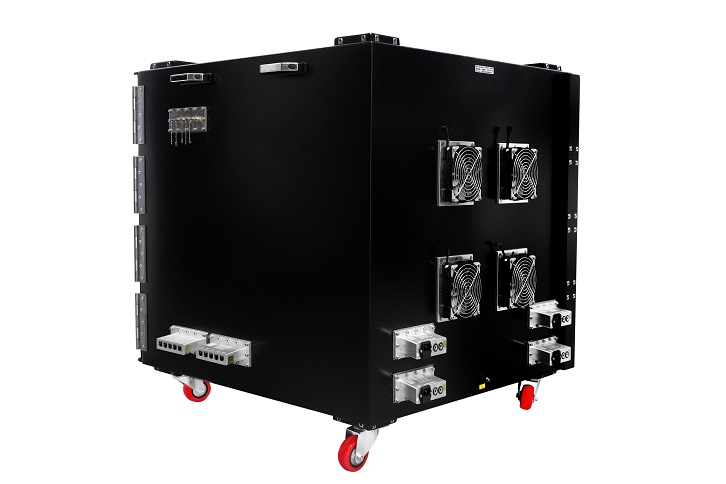

HDRF-353231-A REAR VIEW

enlarge

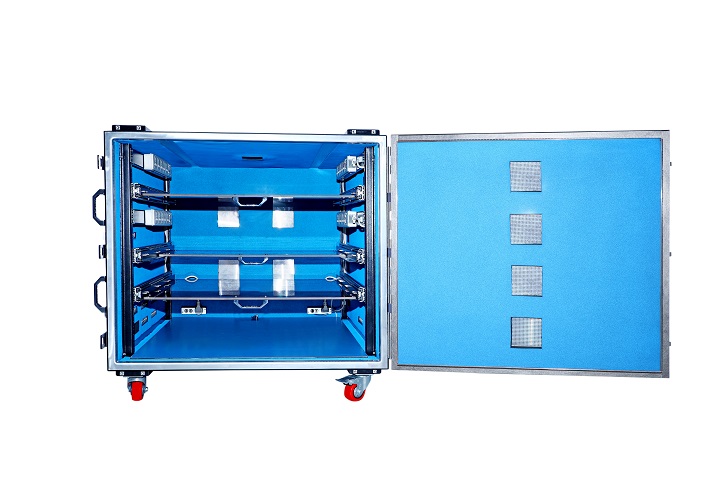

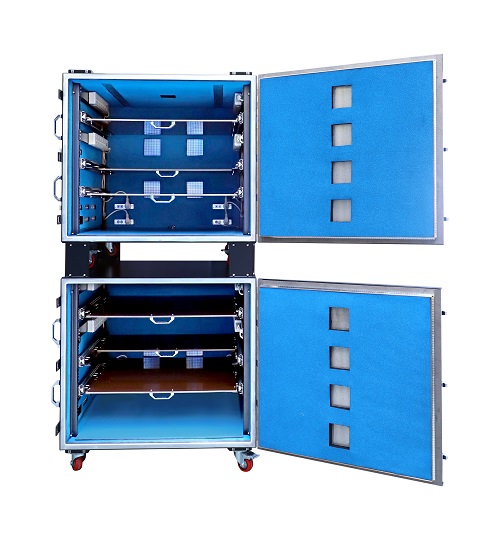

HDRF-353231-A INSIDE VIEW

enlarge
