HDRF-3170-I

HDRF-3170-I RF Shield Test Box

HDRF-3170-I
HDRF-3170-I
HDRF-3170-I
HDRF-3170-I
HDRF-3170-I
HDRF-3170-I
ce rohs ISO
HDRF-3170-I
HDRF-3170-I
HDRF-3170-I
HDRF-3170-I
HDRF-3170-I
HDRF-3170-I

Want to customize your shield box? Build Your Shieldbox

HDRF-3170-I

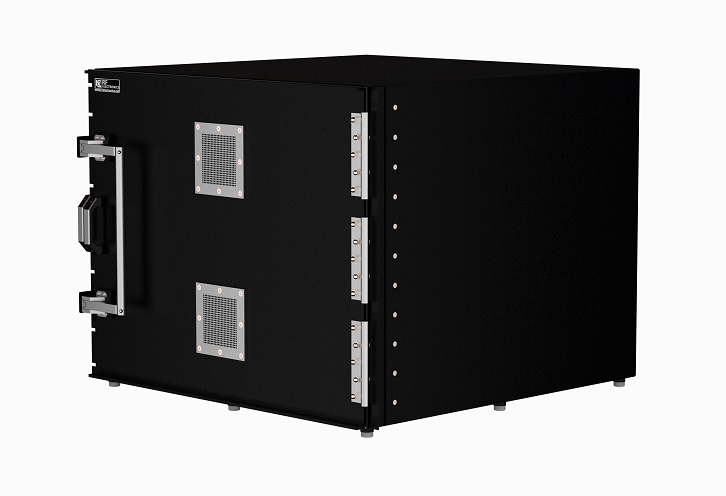

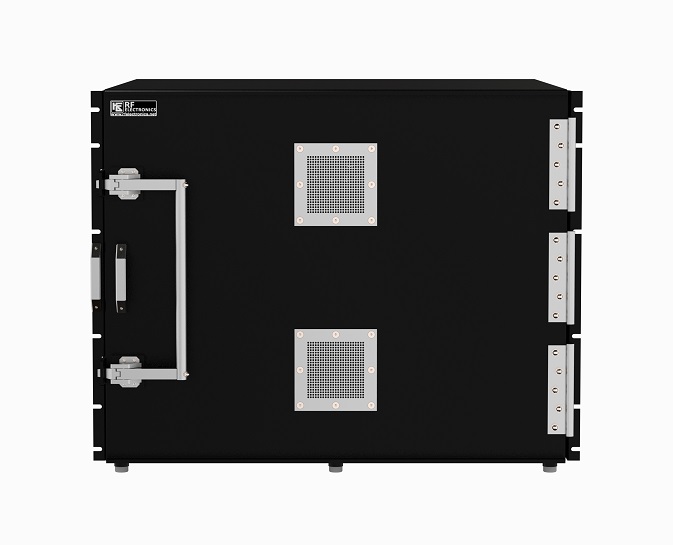

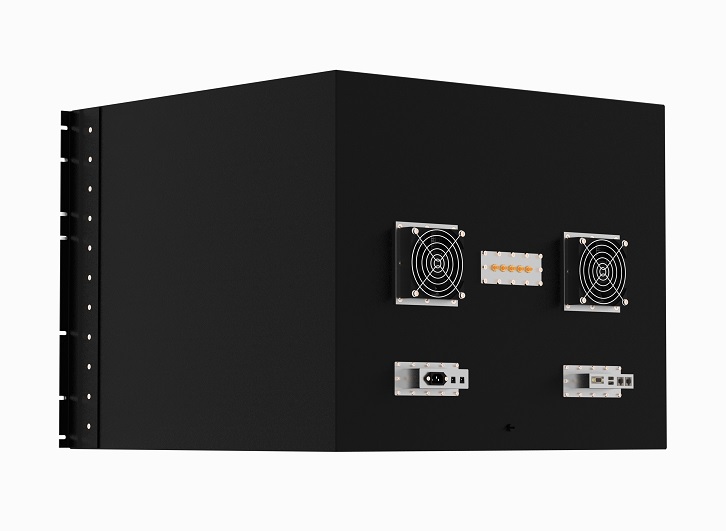

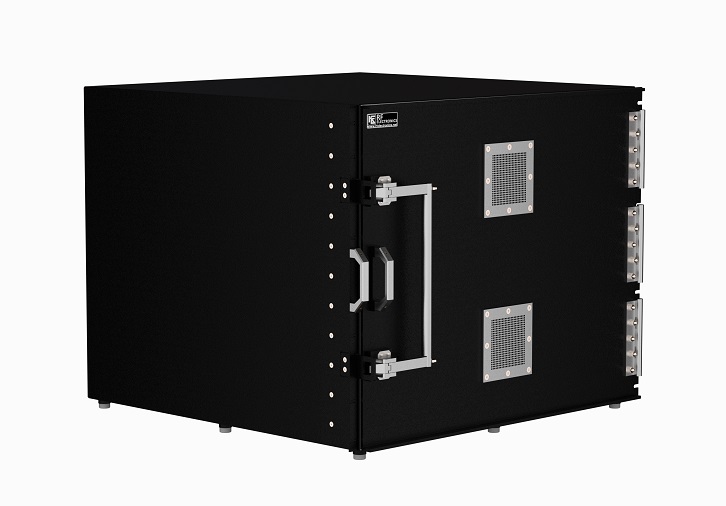

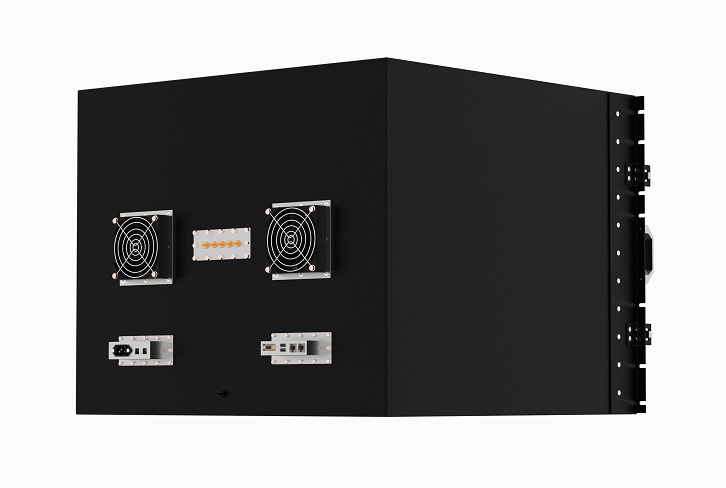

HDRF-3170-I RF Shield Test Box

  • Bench-top / Table-Top RF Shield Box.
  • Designed and Developed for WLAN , Wireless device testing.
  • Ideal for 802.11a, b, g, n, ac, ax,be
  • Bluetooth, RFID, 3G, LTE , 5G FR1 Device testing

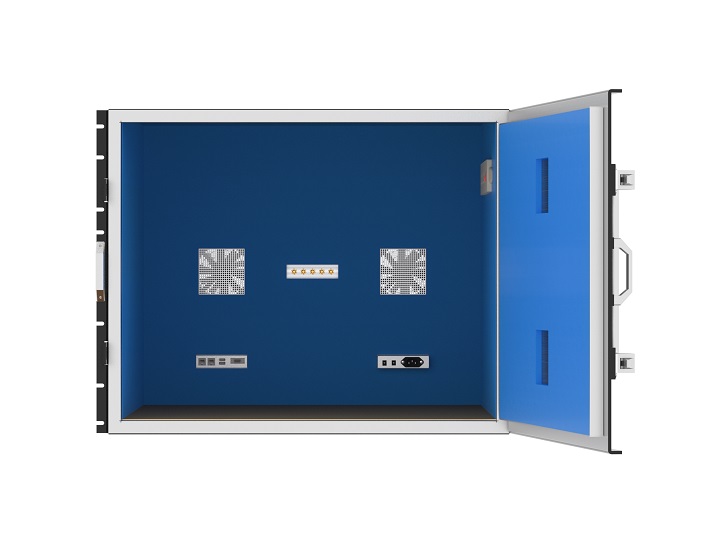

Internal Dimensions

Internal Dimensions

Width: 707 MM, Height: 578 MM, Depth : 668 MM

External Dimensions

External Dimensions

Width: 785 MM, Height: 635 MM, Depth : 785 MM

Add Product to Inquiry Add Product to Inquiry

Industries

Defence
Defence
Telecommunication
Telecommunication
Industrial Automation
Industrial Automation
Automotive
Automotive
Research Institution
Research Institution
Radar Systems
Radar Systems
Medical Devices
Medical Devices

RF Isolation

  • ≥ 130 dB @ 20 MHz ~ 1 GHz
  • ≥ 120 dB @ 3 GHz
  • ≥ 120 dB @ 5 GHz
  • ≥ 115 dB @ 6 GHz
  • ≥ 110 dB @ 7 GHz
  • ≥ 110 dB @ 8 GHz
  • ≥100 db @ 12 GHz
V/S
RF Isolation
Competition Isolation

Features of HDRF-3170-I

  • Designed and Developed for WLAN , Wireless device testing
  • Ideal for 802.11a, b, g, n, ac, ax,be
  • Bluetooth, RFID, 3G, 5G FR1 Device testing

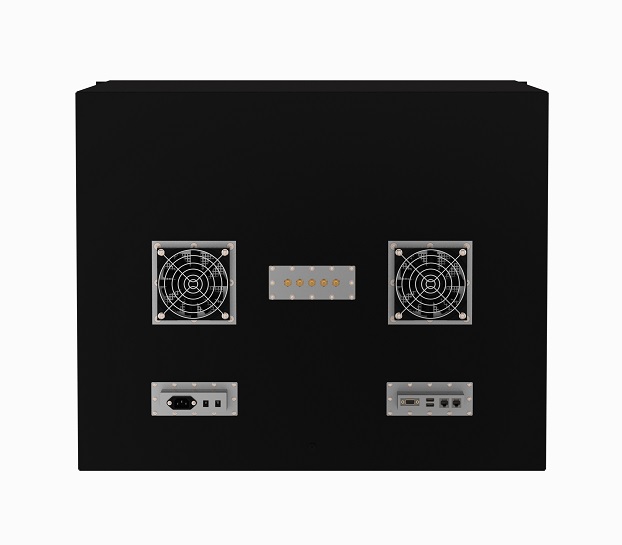

  • Wide range of I/O connector options.
  • Thick RF absorbing foam deadens standing waves and reflections.
  • Higher Level Isolation up-to 12GHz for accurate performance.
  • Equipped with shielded power filters for power connection in the box while still blocking all wireless signals.
  • Rugged construction for long life.
  • Table Top design for the convenience of testing.
