HDRF-2570-M

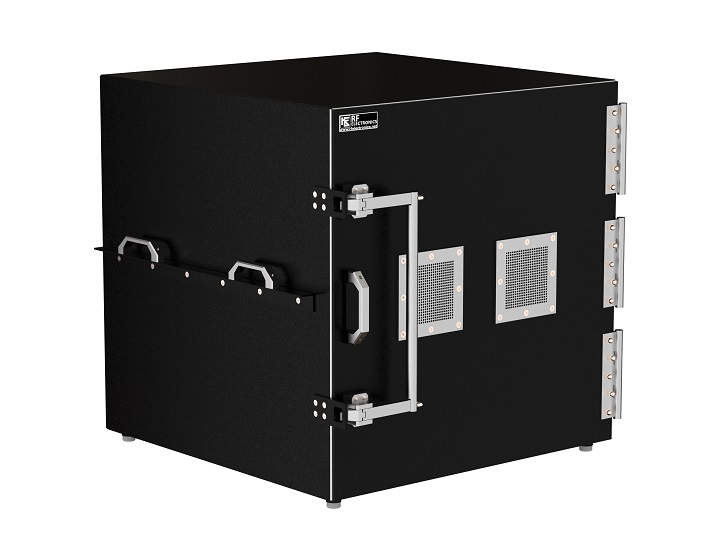

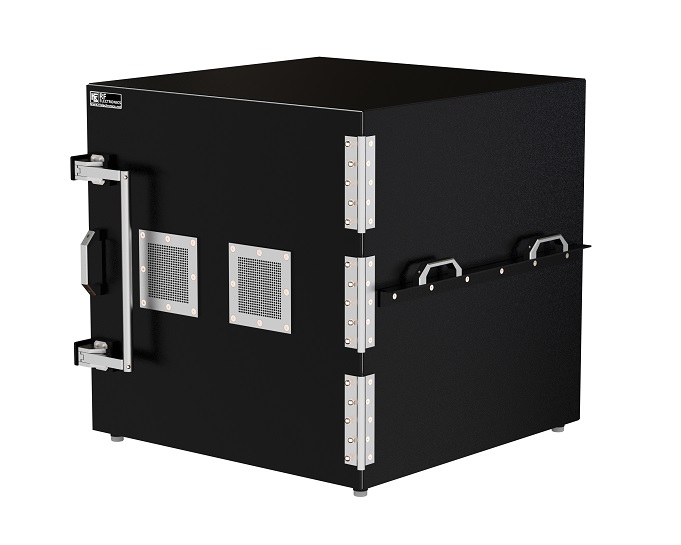

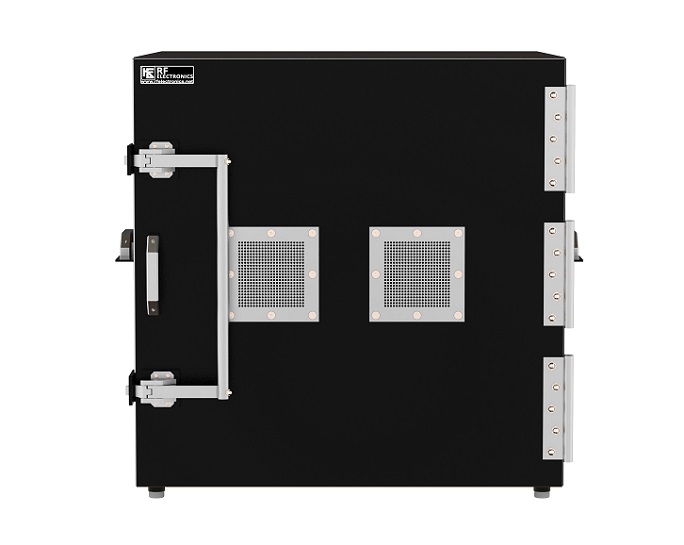

HDRF-2570-M RF Shield Test Box

HDRF-2570-M
HDRF-2570-M
HDRF-2570-M
HDRF-2570-M

Want to customize your shield box? Build Your Shieldbox

HDRF-2570-M

HDRF-2570-M RF Shield Test Box

  • Bench-top / Table-Top RF Shield Box.
  • Designed and Developed for WLAN , Wireless device testing.
  • Ideal for 802.11a, b, g, n, ac, ax, be
  • Bluetooth, RFID, 3G, LTE , 5G Device testing
Internal Dimensions

Internal Dimensions

Width: 576 MM, Height: 588 MM, Depth : 548 MM

External Dimensions

External Dimensions

Width: 635 MM, Height: 635 MM, Depth : 635 MM

Weight

Weight

Net Weight: 42.40 KG, Gross Weight: 48.00 KG

RF Isolation

  • ≥ 130 dB @ 20 MHz ~ 1 GHz
  • ≥ 120 dB @ 3 GHz
  • ≥ 120 dB @ 5 GHz
  • ≥ 115 dB @ 6 GHz
  • ≥ 110 dB @ 7 GHz
  • ≥ 110 dB @ 8 GHz
  • ≥100 db @ 12 GHz
V/S
RF Isolation
Competition Isolation

Features of HDRF-2570-M

  • Designed and Developed for WLAN , Wireless device testing
  • Ideal for 802.11a, b, g, n, ac, ax, be
  • Bluetooth, RFID, 3G, 5G Device testing

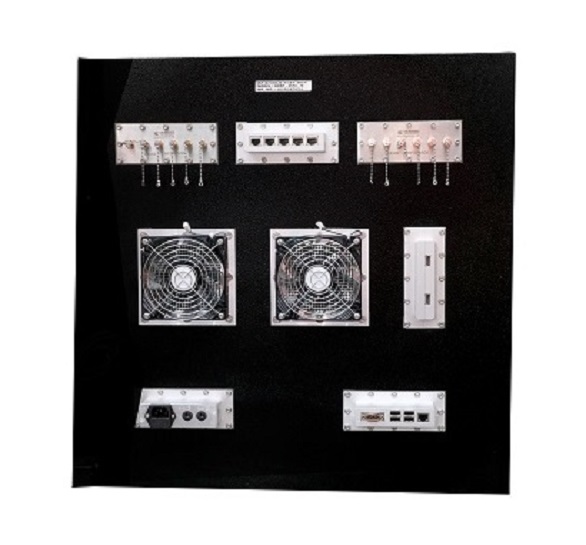

  • Wide range of I/O connector options.

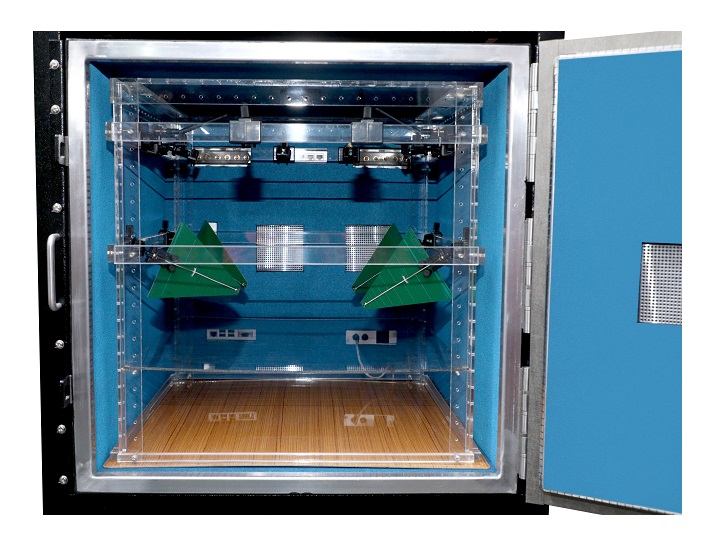

  • Thick RF absorbing foam deadens standing waves and reflections.
  • Higher Level Isolation up-to 12GHz for accurate performance.
  • Equipped with shielded power filters for power connection in the box while still blocking all wireless signals.
  • Rugged construction for long life.
  • Table Top design for the convenience of testing.
