HDRF-2570-AI

HDRF-2570-AI RF Shield Test Box

HDRF-2570-AI
HDRF-2570-AI
HDRF-2570-AI
HDRF-2570-AI
HDRF-2570-AI
HDRF-2570-AI
HDRF-2570-AI

Want to customize your shield box? Build Your Shieldbox

HDRF-2570-AI

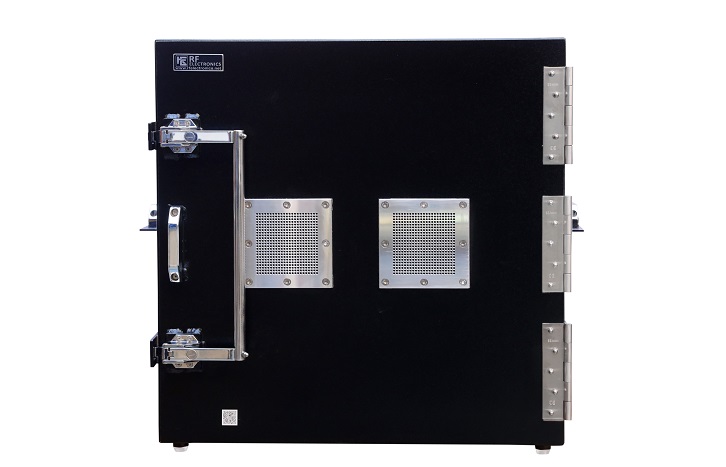

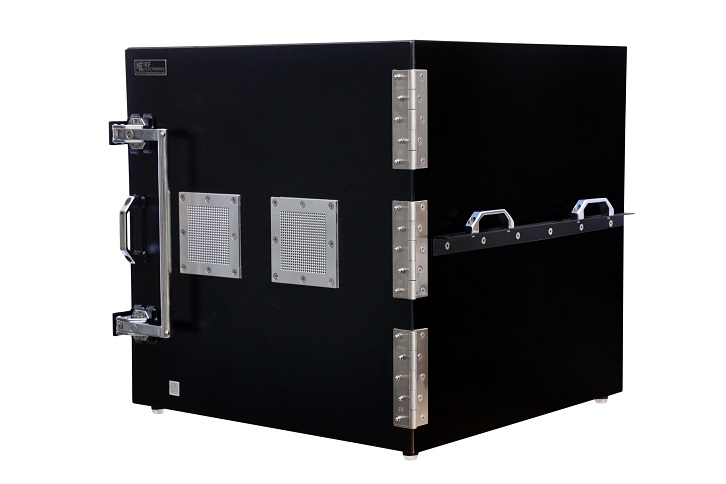

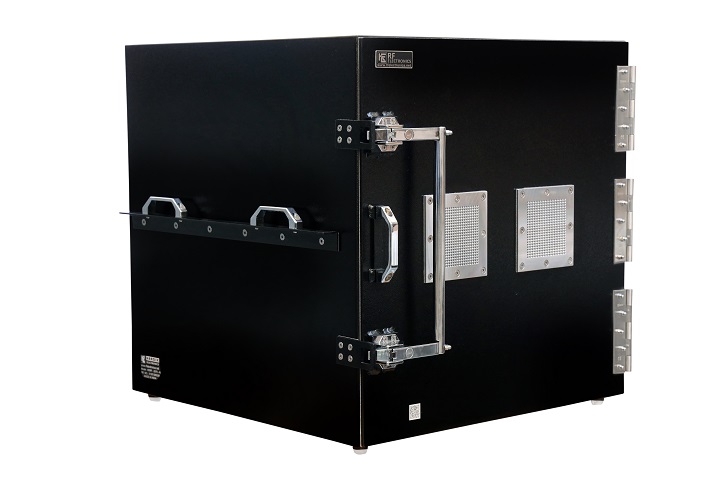

HDRF-2570-AI RF Shield Test Box

  • Bench-top / Table-Top RF Shield Box.
  • Designed and Developed for WLAN , Wireless device testing.
  • Ideal for 802.11a, b, g, n, ac, ax,be
  • Bluetooth, RFID, 3G, LTE , 5G FR1 Device testing
Internal Dimensions

Internal Dimensions

Width: 571 MM, Height: 579 MM, Depth : 548 MM

External Dimensions

External Dimensions

Width: 635 MM, Height: 635 MM, Depth : 635 MM

Weight

Weight

Net Weight: 35.00 KG, Gross Weight: 45.20 KG

Weight

Packaging Dimensions

Width: 31.00 Inch, Height: 29.00 Inch, Depth: 33.00 Inch

RF Isolation

  • ≥ 130 dB @ 20 MHz ~ 1 GHz
  • ≥ 120 dB @ 3 GHz
  • ≥ 120 dB @ 5 GHz
  • ≥ 115 dB @ 6 GHz
  • ≥ 110 dB @ 7 GHz
  • ≥ 110 dB @ 8 GHz
  • ≥100 db @ 12 GHz
V/S
RF Isolation
Competition Isolation

Features of HDRF-2570-AI

  • Designed and Developed for WLAN , Wireless device testing
  • Ideal for 802.11a, b, g, n, ac, ax,be
  • Bluetooth, RFID, 3G, 5G FR1 Device testing

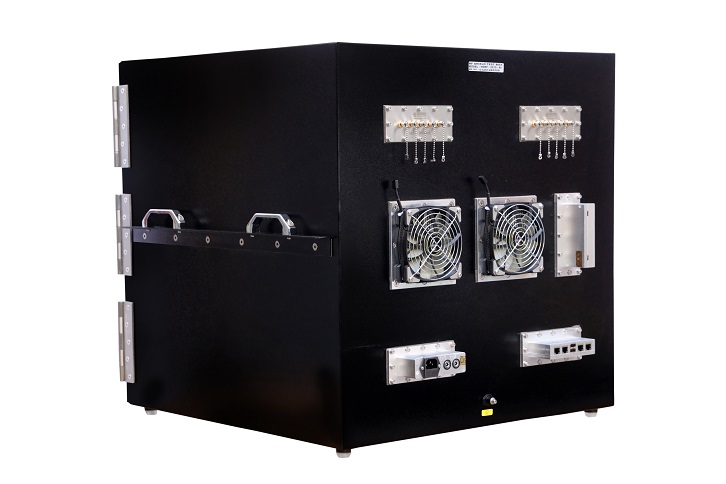

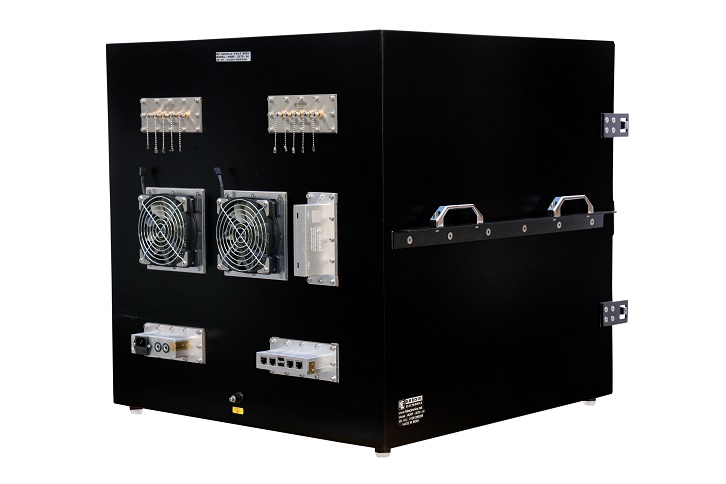

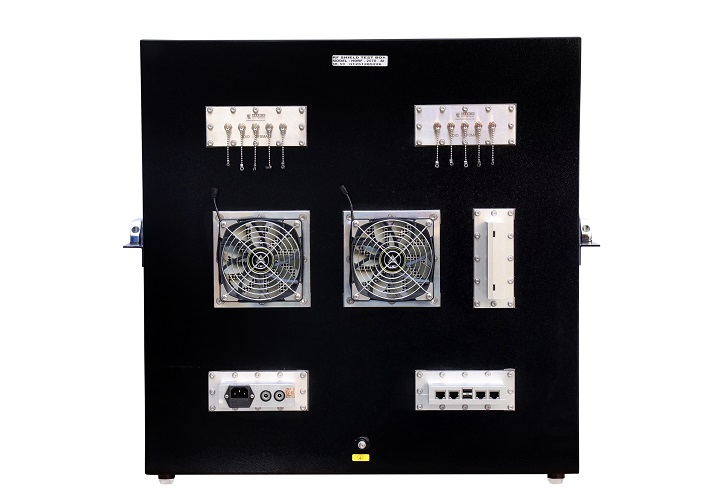

  • Wide range of I/O connector options.

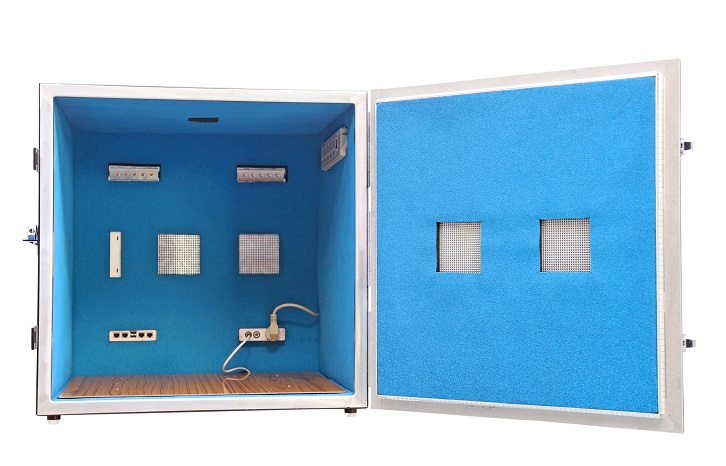

  • Thick RF absorbing foam deadens standing waves and reflections.
  • Higher Level Isolation up-to 12GHz for accurate performance.
  • Equipped with shielded power filters for power connection in the box while still blocking all wireless signals.
  • Rugged construction for long life.
  • Table Top design for the convenience of testing.
  • Applications:
Commercial Telecom Automotive Aerospace & Defence
5G, LTE, WiFi Testing – Ensuring network performance and compliance with 3GPP, IEEE 802.11, and ETSI standards. V2X Communication Testing – Evaluating Vehicle-to-Everything (V2X) connectivity under real-world conditions. Military RF Communication Systems – Securing classified communication systems against RF leakage.
IoT Device Certification – Verifying RF performance in IoT, Bluetooth, Zigbee, and LoRaWAN devices. ADAS & Radar System Validation – Shielding autonomous vehicle radar (77 GHz), LiDAR, and camera modules from interference. Electronic Warfare (EW) Testing – Evaluating countermeasure effectiveness in jamming and radar detection applications.
Smartphone & Wearable Testing – Conducting OTA (Over-the-Air) tests for mobile and smart wearable devices. In-Vehicle Wireless Charging & Infotainment – Testing interference in wireless chargers, Bluetooth, and in-car WiFi systems. Satellite & GNSS Receiver Testing – Assessing GPS/GNSS performance in space and high-altitude environments.
WiFi 6E & WiFi 7 Performance Validation – Measuring high-frequency 6 GHz+ signal attenuation and interference. EMC/EMI Compliance for EVs – Testing electric vehicle (EV) components against electromagnetic disturbances. Avionics RF Testing – Shielding aircraft communication and radar systems from unwanted RF exposure.
Base Station & Small Cell Testing – Validating the shielding effectiveness of macro/micro base stations. Keyless Entry & Remote Start Systems – Securing RF key fob signals from unauthorized hacking attempts. UAV & Drone RF Testing – Isolating drones for secure radio, navigation, and remote control performance evaluation.
