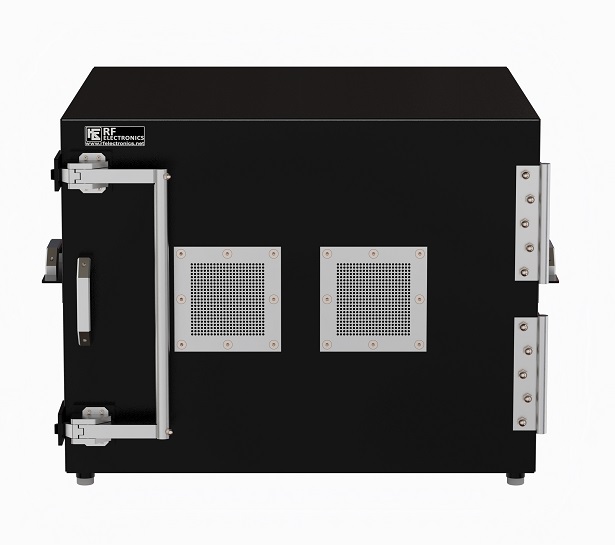

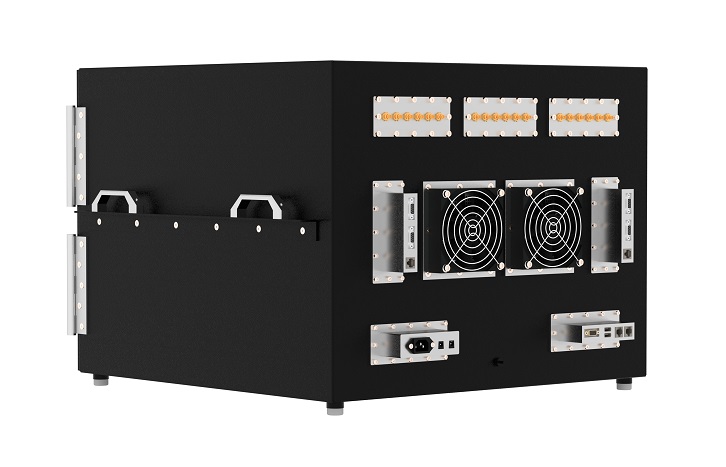

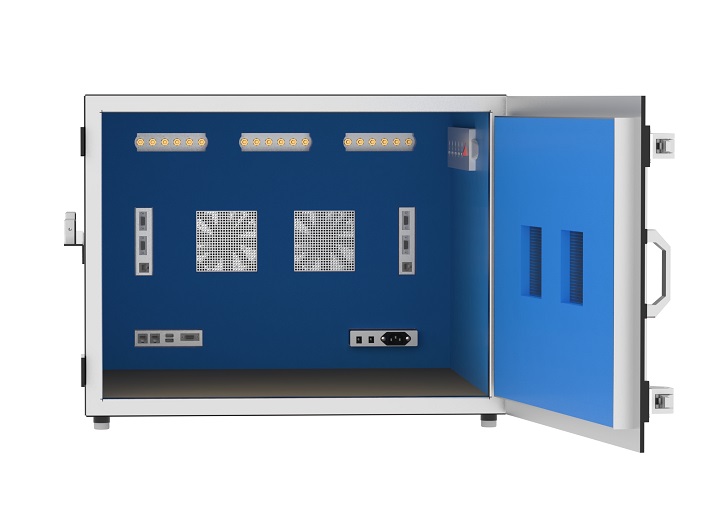

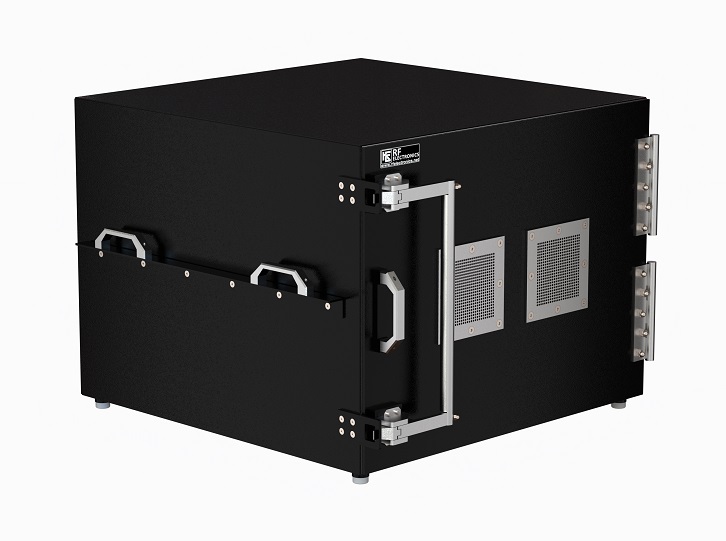

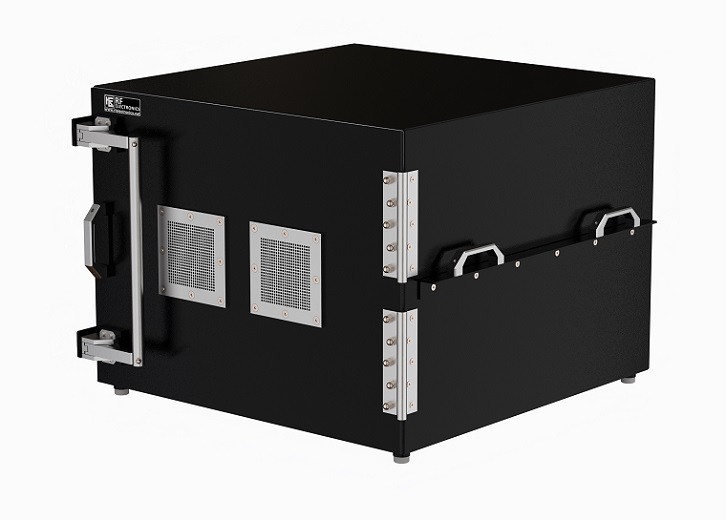

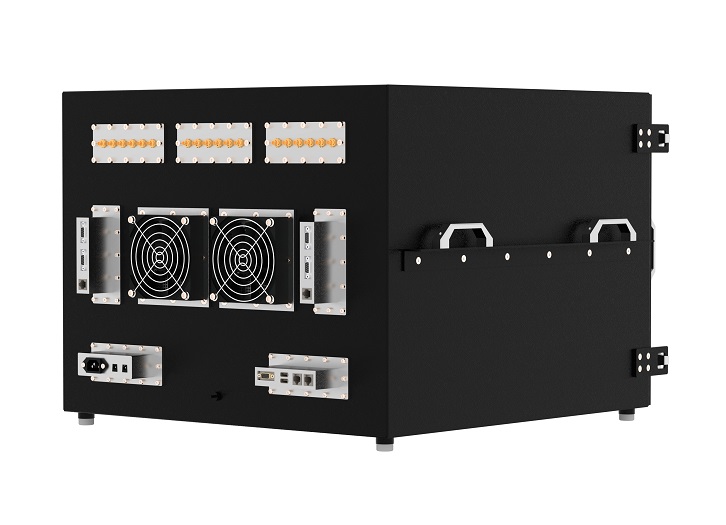

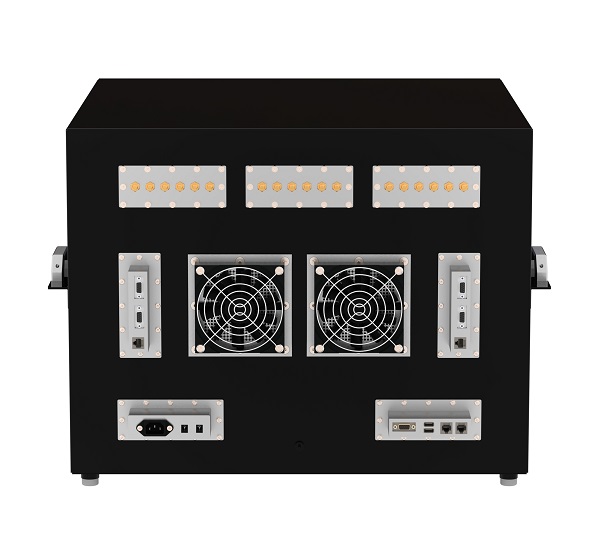

HDRF-1970-D RF Shield Test Box

Want to customize your shield box? Build Your Shieldbox

Internal Dimensions

Width: 558 MM, Height: 418 MM, Depth : 508 MM

External Dimensions

Width: 625 MM, Height: 475 MM, Depth : 625 MM

Weight

Net Weight: 32.50 KG, Gross Weight: 40.00 KG

V/S

Designed and Developed for WLAN, Wireless device testing
Ideal for 802.11a, b, g, n, ac, ax, be
Bluetooth, RFID, 3G, 5G Device testing.
Wide range of I/O connector options.
Thick RF absorbing foam deadens standing waves and reflections.
Higher Level Isolation up-to 12GHz for accurate performance.
Equipped with shielded power filters for power connection in the box while still blocking all wireless signals.
Affordable shielding solution without compromising on quality or performance.
Compact and portable shield box for easy transportation and setup in various environments.
Ideal for bench-top shield box applications. Rugged welded aluminium construction for long life.
Customized Size to suit application specific requirements, ideal for test platforms.
