HDRF-181823

HDRF-181823 RF Shield Test Box

Bench-top / Table-Top RF Shield Box.
Designed and Developed for WLAN , Wireless device testing.
Ideal for 802.11a, b, g, n, ac, ax, be
Bluetooth, RFID, 3G, LTE , 5G Device testing

Internal Dimensions

Width: 396 MM, Height: 530 MM, Depth : 396 MM

External Dimensions

Width: 450 MM, Height: 580 MM, Depth : 450 MM

Add Product to Inquiry

Add Product to Inquiry

Industries

Telecommunication

Industrial Automation

Research Institution

Medical Devices

RF Isolation

≥ 130 dB @ 20 MHz ~ 1 GHz
≥ 120 dB @ 3 GHz
≥ 120 dB @ 5 GHz
≥ 115 dB @ 6 GHz
≥ 110 dB @ 7 GHz
≥ 110 dB @ 8 GHz
≥100 db @ 12 GHz

V/S

RF Isolation

Competition Isolation

Features of HDRF-181823

Designed and Developed for WLAN , Wireless device testing
Ideal for 802.11a, b, g, n, ac, ax, be
Bluetooth, RFID, 3G, 5G Device testing
Wide range of I/O connector options.
Thick RF absorbing foam deadens standing waves and reflections.
Higher Level Isolation up-to 12GHz for accurate performance.
Equipped with shielded power filters for power connection in the box while still blocking all wireless signals.
Rugged construction for long life.
Table Top design for the convenience of testing.

Need Help?

Download Datasheet

DOWNLOAD

Free Consultation

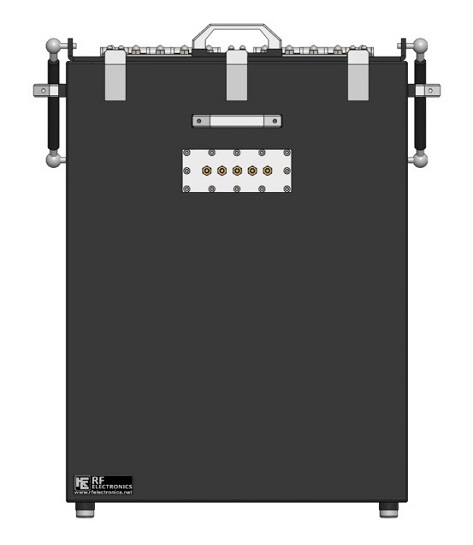

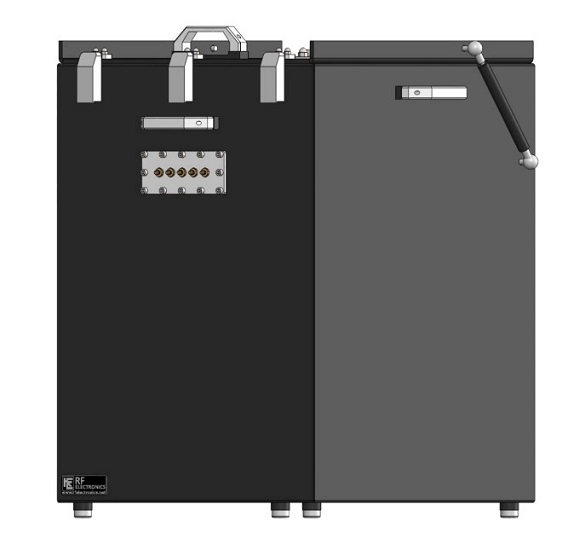

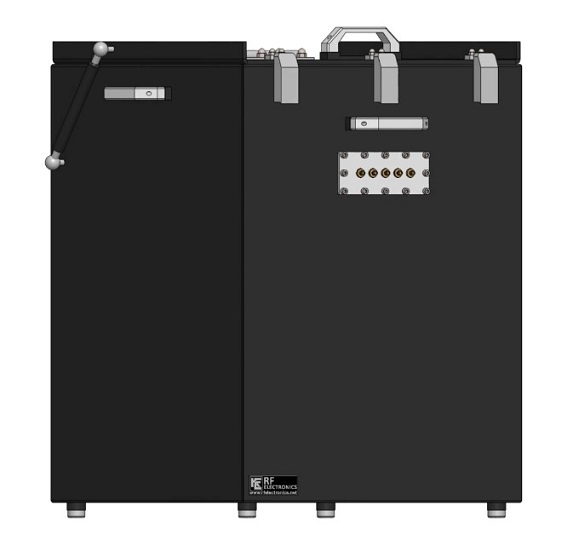

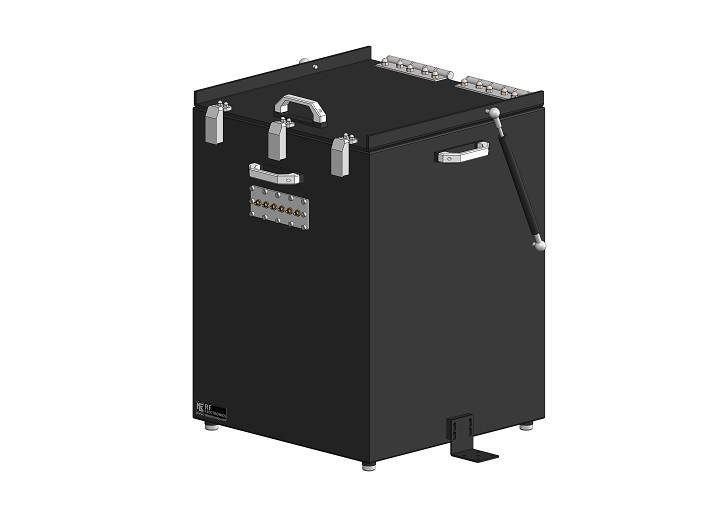

HDRF-181823 FRONT VIEW

enlarge

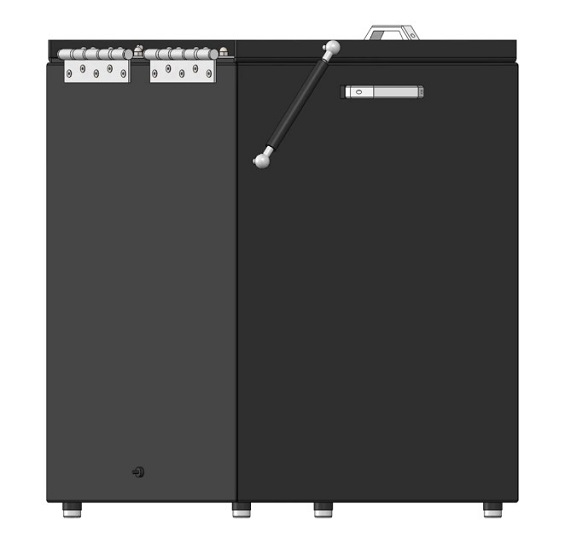

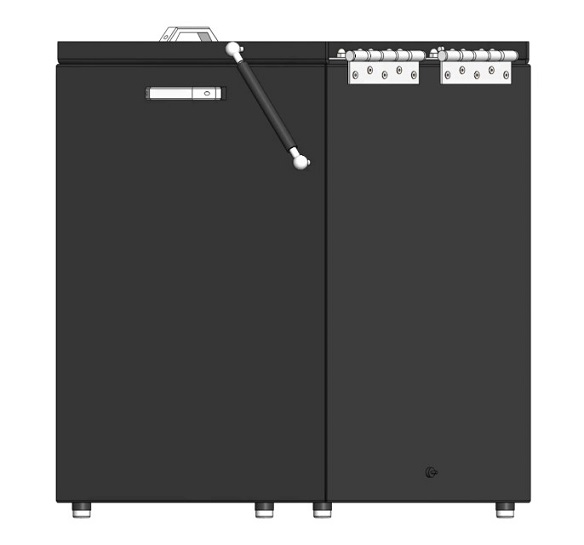

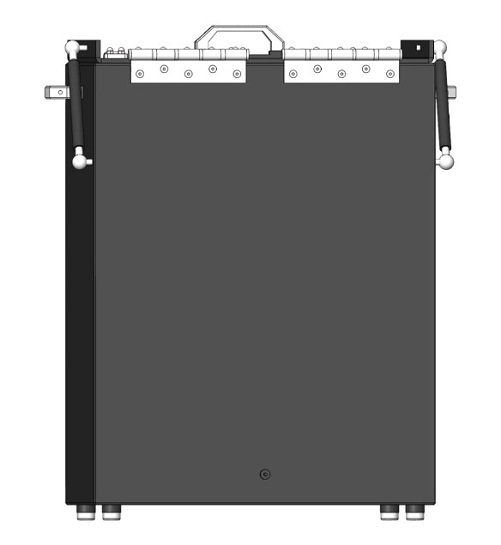

HDRF-181823 REAR VIEW

enlarge

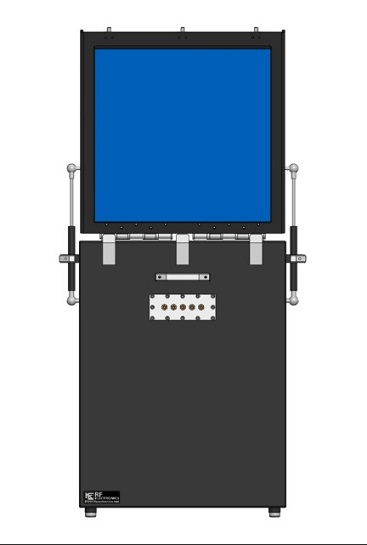

HDRF-181823 INSIDE VIEW

enlarge
