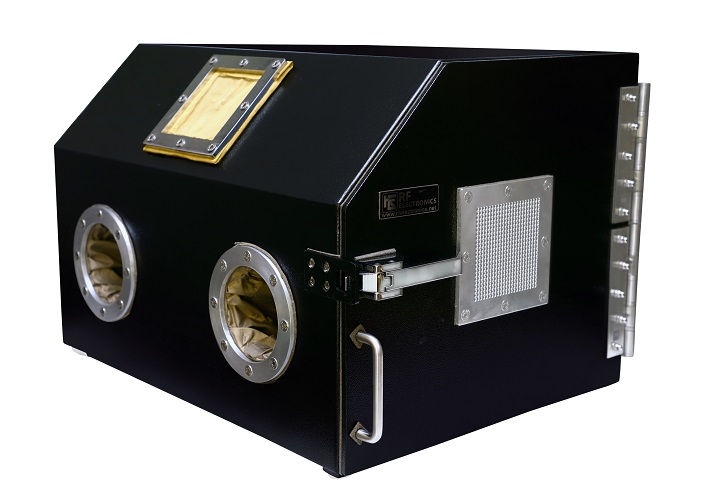

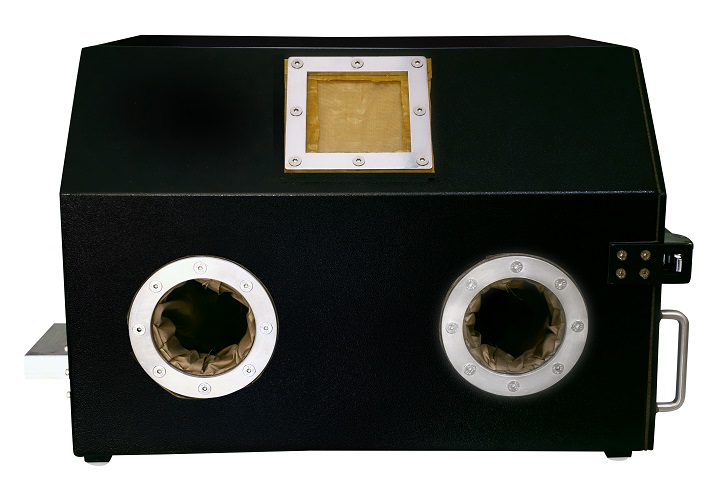

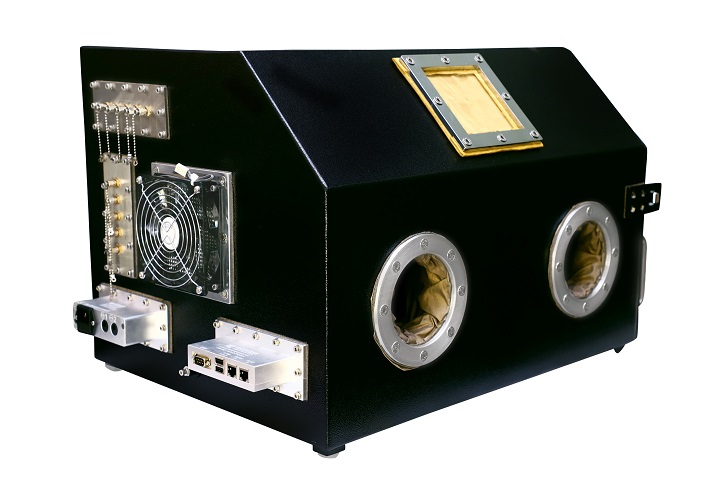

HDRF-1557 RF Shield Test Box

Want to customize your shield box? Build Your Shieldbox

Desktop / Benchtop RF Shield Box.
Designed and Developed for Digital Forensic Investigations , WLAN , Wireless device testing.
Ideal for 802.11a, b, g, n, ac , ax,be
Bluetooth, RFID, 3G Device testing

Internal Dimensions

Width: 374 MM, Height: 325 MM, Depth : 476 MM

External Dimensions

Width: 438 MM, Height: 390 MM, Depth : 565 MM

V/S

Designed and Developed for WLAN , Wireless device testing
Ideal for 802.11a, b, g, n, ac, ax,be
Bluetooth, RFID, 3G, 5G Device testing

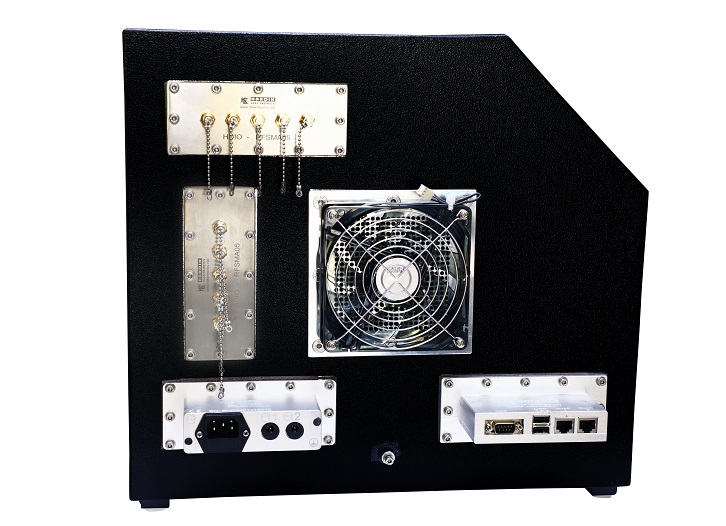

Wide range of I/O connector options.

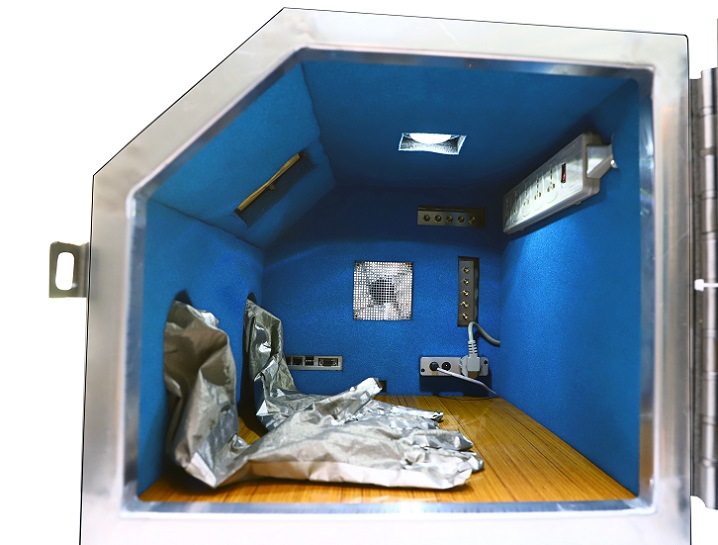

Thick RF absorbing foam deadens standing waves and reflections.
Higher Level Isolation up-to 12GHz for accurate performance.
Equipped with shielded power filters for power connection in the box while still blocking all wireless signals.
Maximize testing efficiency with our custom-designed RF enclosures for consumer product testing.
Rugged construction for long life.
Table Top design for the convenience of testing.
